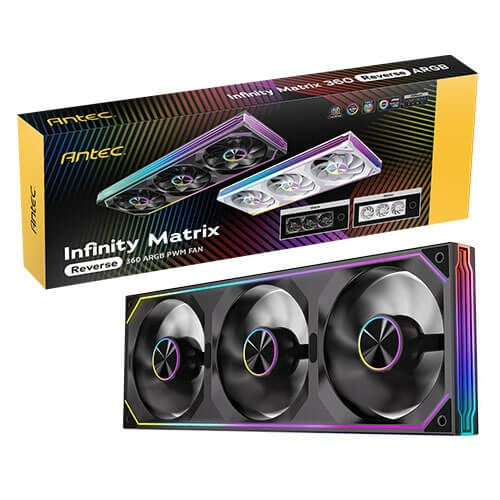

Antec Infinity Matrix IM360R ARGB - the reverse-blade 360mm single-frame fan kit.
The IM360R is the reverse-blade version of the IM360: the impellers are flipped inside the same 364 x 124 x 28mm single frame, so the lit face is the one you see when the fan is an intake or is mounted against glass. It runs 800 to 1800 RPM on one 4-pin PWM connector for up to 134.9 CFM at 1.34 mmAq, at 19.7 to 33.2 dB(A), on hydraulic bearings rated 40,000 hours. Lighting is 56 addressable RGB LEDs across four-sided infinity mirrors on a separate 3-pin 5V cable, with double-sided silicone anti-vibration pads.
Key Features
-
Reverse-blade impeller — Flipped blades inside the same single frame - the infinity-mirror face shows on an intake.
-
Single-frame triple fan — 364 x 124 x 28mm one-piece frame; one mount, one screw set, no gaps.
-
800-1800 RPM on 4-pin PWM — One PWM connector drives all three impellers; 64.58 to 134.9 CFM.
-
134.9 CFM at 1.34 mmAq — The highest airflow of the IM family, at 19.7-33.2 dB(A).
-
56 addressable RGB LEDs — Four-sided infinity mirror plus dual light strips and hub rings, 3-pin 5V ARGB.
Specifications
| Fan Type |
360mm reverse-blade PWM fan kit (3 x 120mm, single frame) |
| Dimensions |
364 x 124 x 28mm |
| Bearing |
Hydraulic bearing, 40,000 hours |
| Lighting |
Addressable RGB - 56 LEDs, 3-pin 5V ARGB |
| Fan Speed |
800+/-200 to 1800+/-10% RPM (4-pin PWM) |
| Airflow / Pressure |
64.58-134.9 CFM / 0.34-1.34 mmAq |
| Noise |
19.7-33.2 dB(A) |
| Rated Voltage / Current |
Fan DC 12V 0.5A / LED DC 5V 1.4A |
| Connectors |
FAN: 4-pin PWM / LED: 3-pin ARGB |
| Mounting |
360mm radiator spacing, front, side or bottom intake |
What's in the box
- 1x Infinity Matrix 360 Reverse ARGB single-frame fan (4-pin PWM + 3-pin ARGB cables)
- Mounting screws
- Requires a motherboard ARGB header or an ARGB controller - no controller in the box
Who it's for
Side-intake and bottom-intake builds where a normal fan would show you its back plate.
