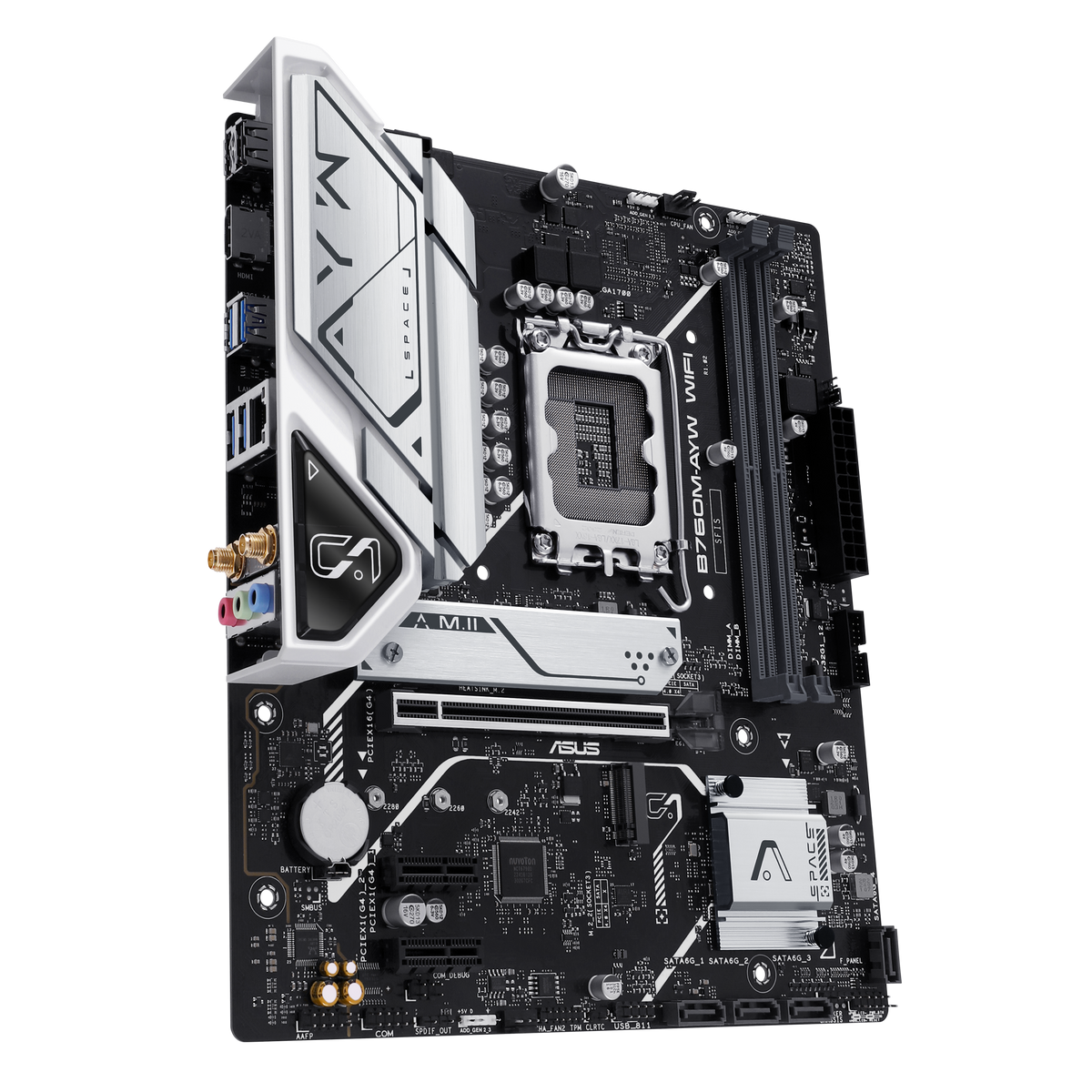

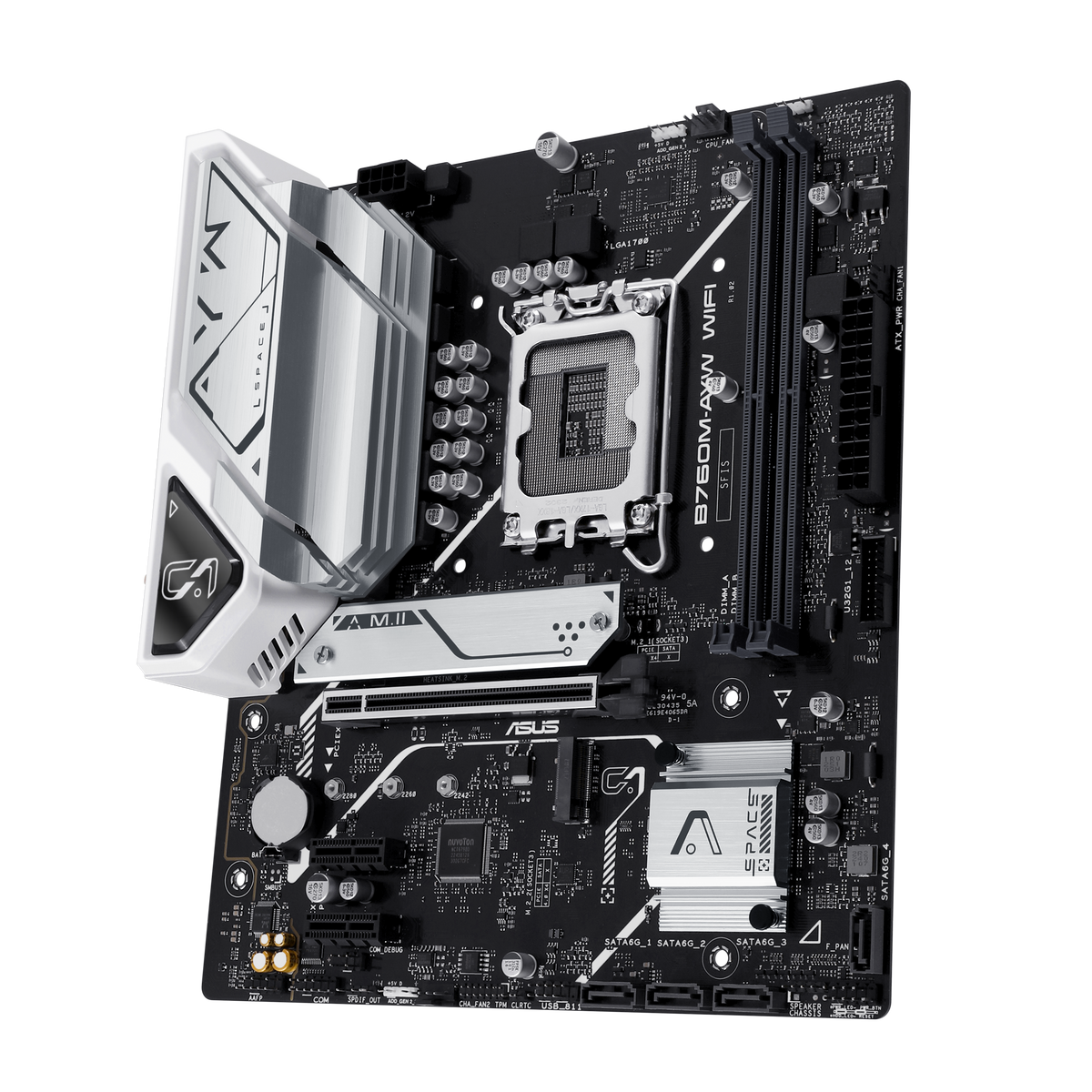

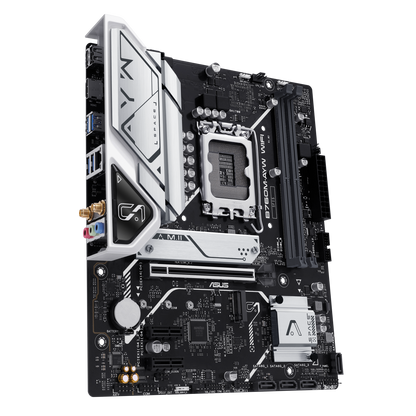

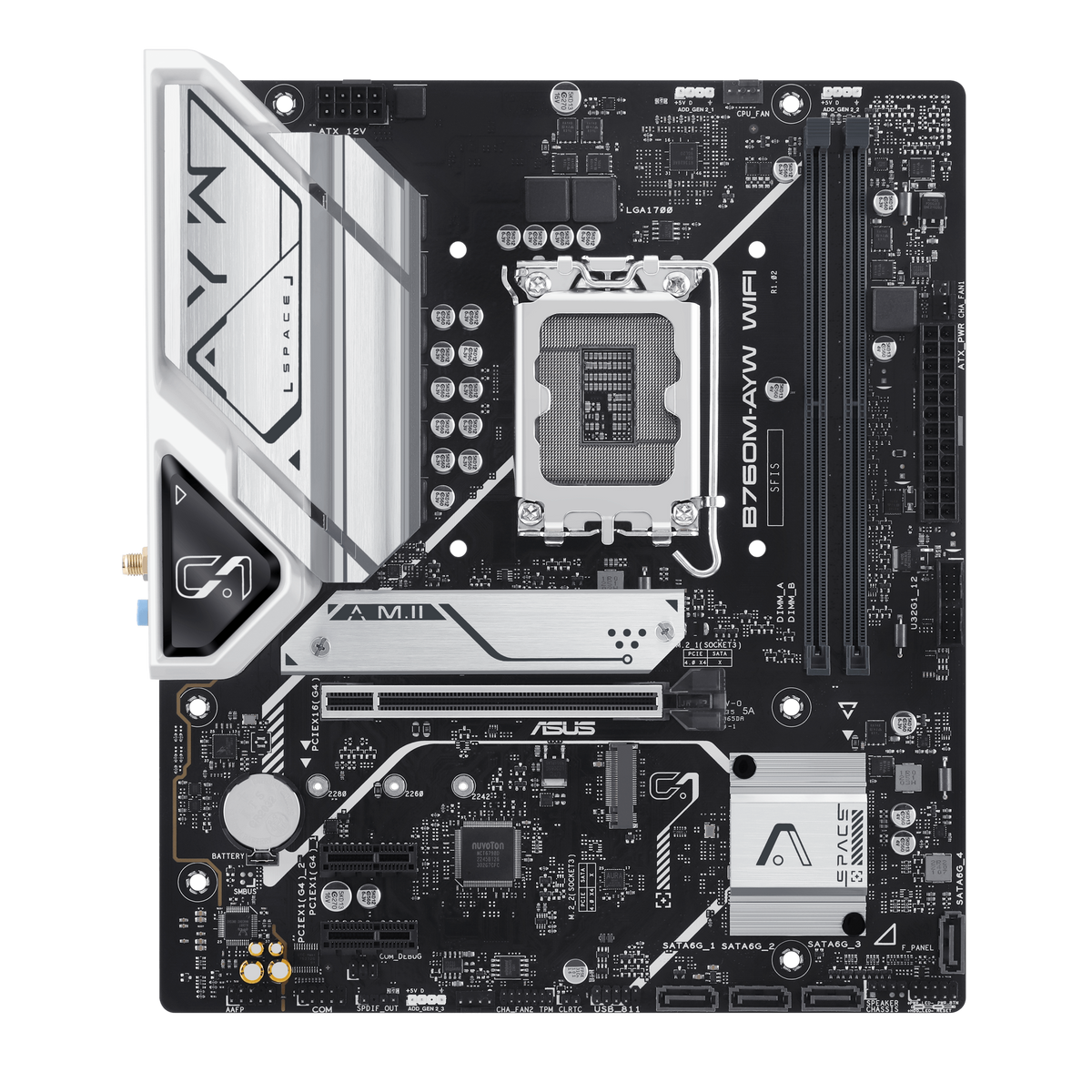

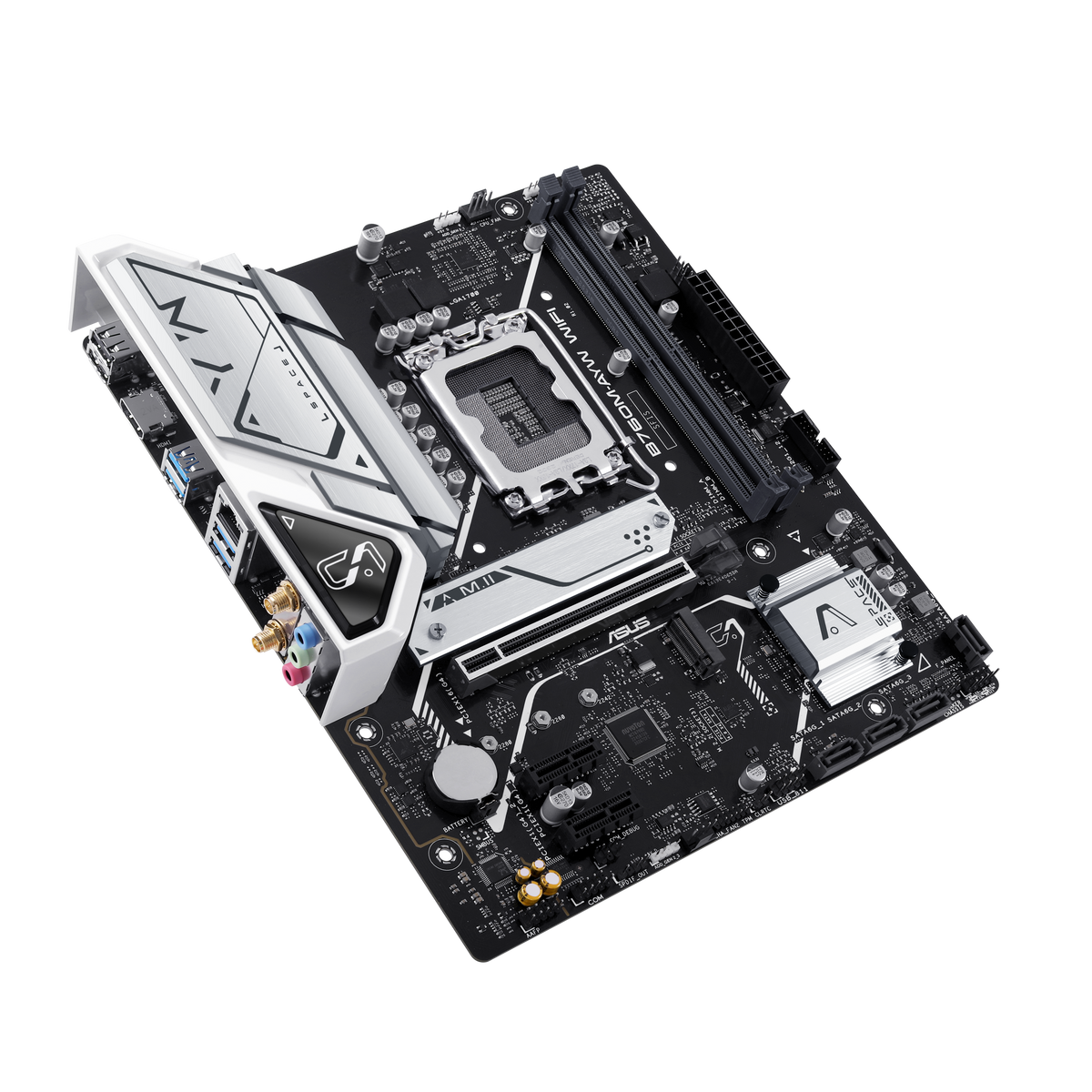

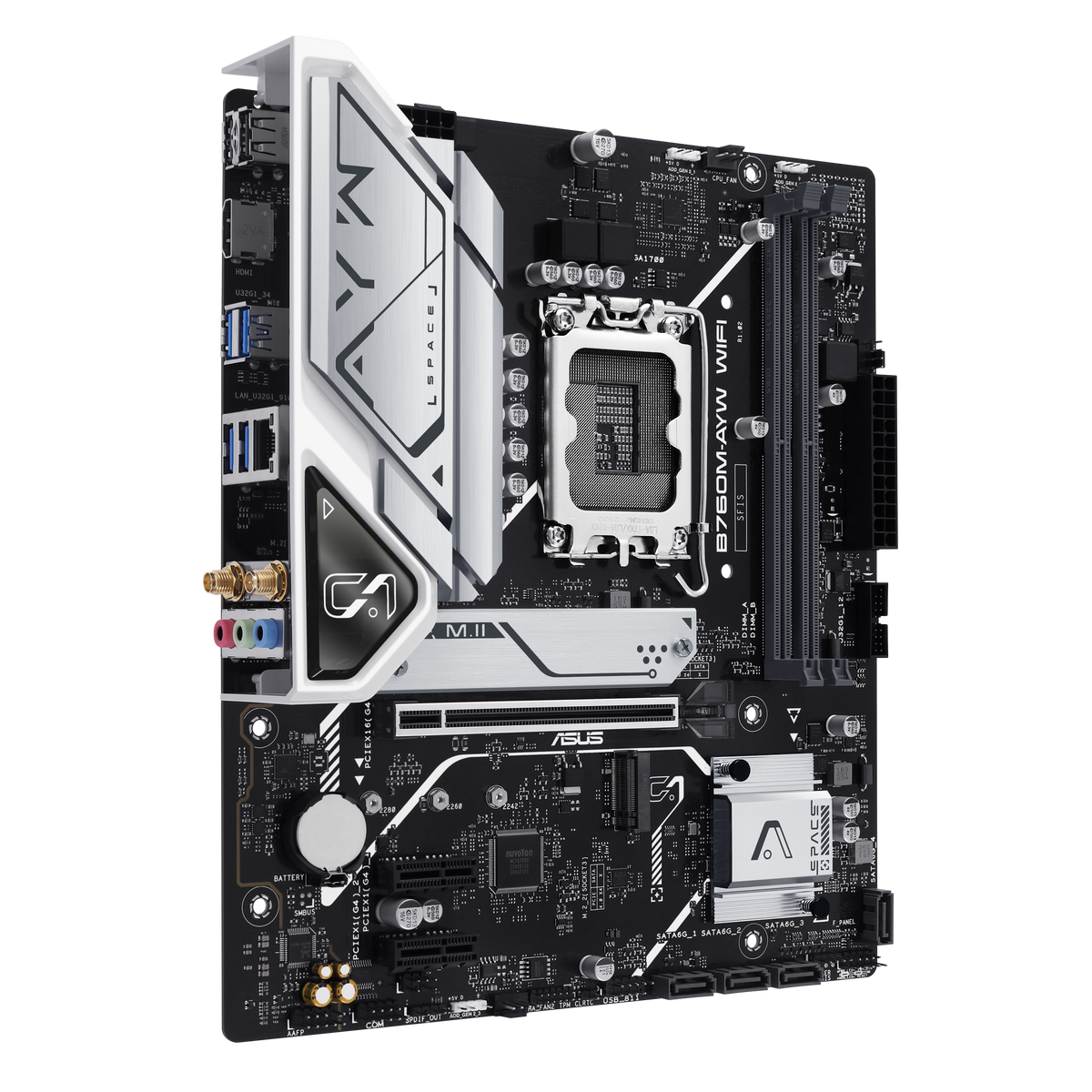

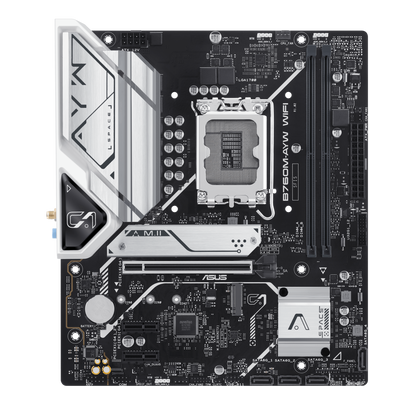

ASUS B760M-AYW WIFI - Intel B760 micro-ATX board for LGA1700.
The ASUS B760M-AYW WIFI runs the Intel B760 chipset on LGA1700, carries 2 x DIMM slots, Max. 96GB, DDR5 and takes 2 x M.2 slots and 4 x SATA 6Gb/s ports. Expansion is 1 x PCIe 4.0 x16. It measures 24.4 x 21.1cm.
Key Features
-
Memory - 2 x DIMM slots, Max. 96GB, DDR5.
-
Intel B760 chipset - the platform's power delivery and I/O routed for LGA1700.
-
Expansion - 1 x PCIe 4.0 x16.
-
Storage - Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports.
-
Networking - 1 x Realtek 2.5Gb Ethernet ASUS LANGuard and Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz.
-

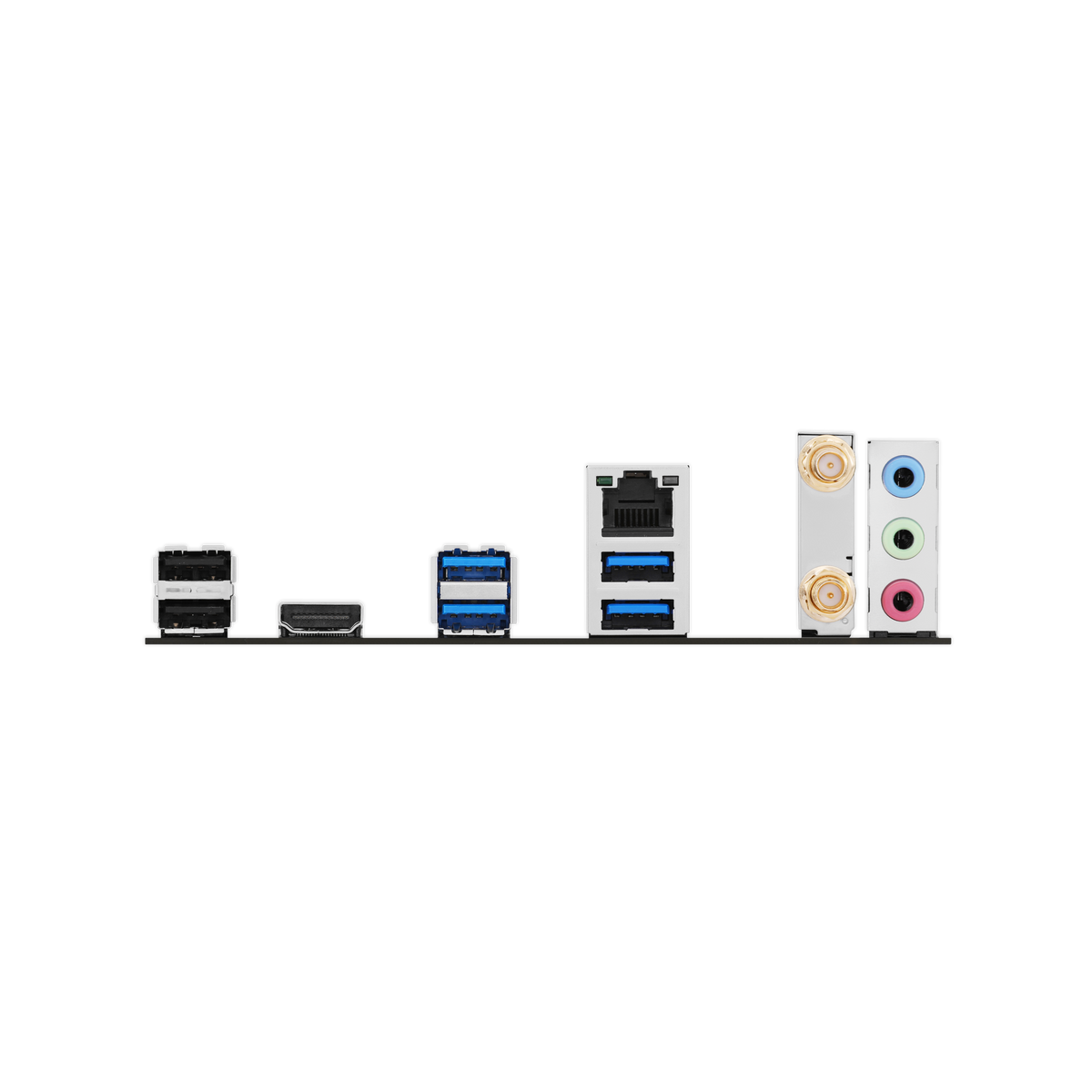

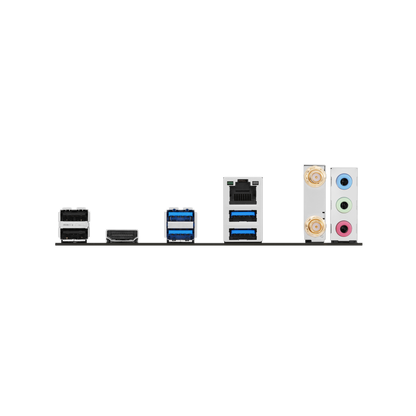

Audio + rear I/O - Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front and 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI TM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb.
-
micro-ATX form factor - 24.4 x 21.1cm.
Specifications
| Chipset + Socket |
Intel B760 Chipset + LGA1700 |
| Memory |
2 x DIMM slots, Max. 96GB, DDR5 |
| Expansion Slots |
1 x PCIe 4.0 x16 |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| Networking |
1 x Realtek 2.5Gb Ethernet ASUS LANGuard + Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz |
| Audio + Rear I/O |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front + 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI TM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb |
| Form Factor |
micro-ATX (24.4 x 21.1cm) |
What's in the box
Motherboard, 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber (+ more).
Who it's for
A micro-ATX board for LGA1700 builds, with room for 2 x DIMM slots.
