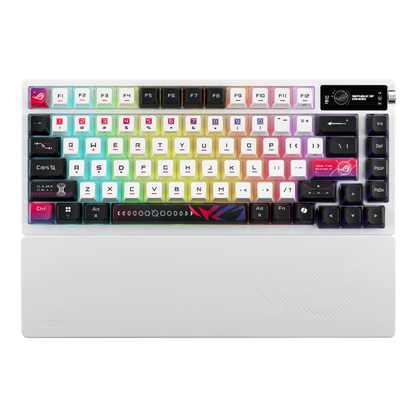

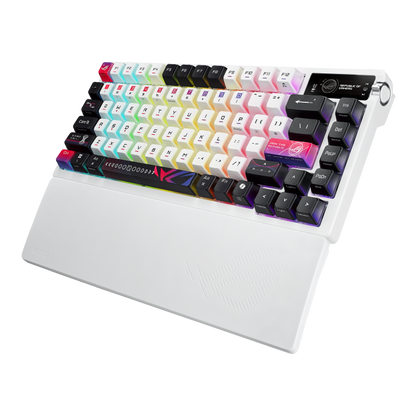

ASUS ROG Azoth X - a 75% wireless custom keyboard with hot-swappable ROG NX Snow V2 switches, a gasket mount and five-layer dampening.

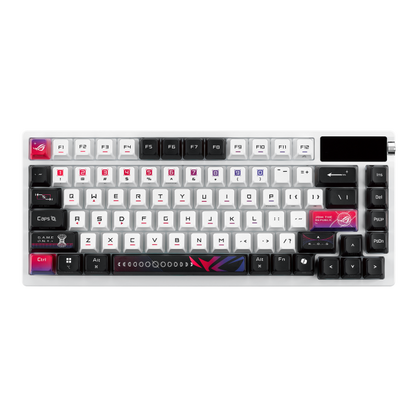

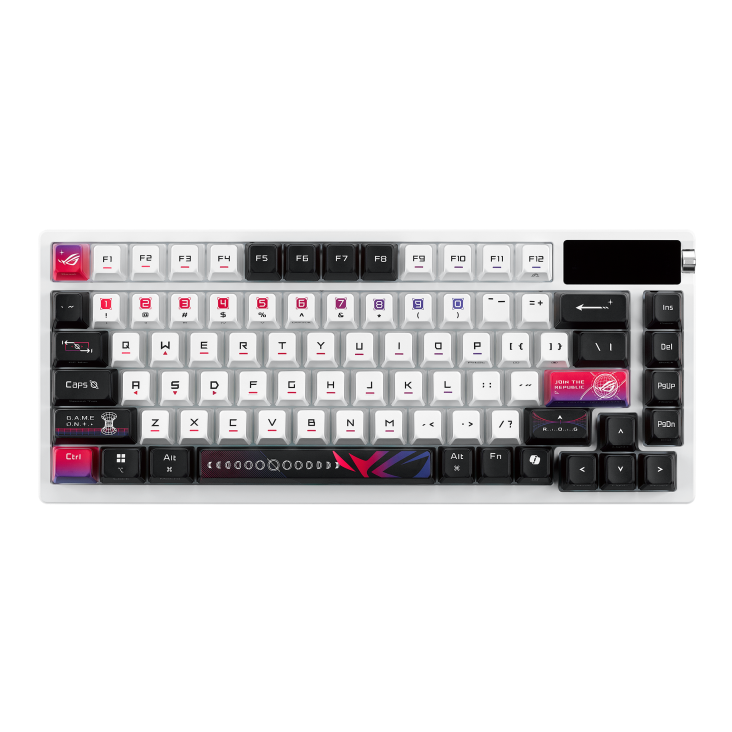

The Azoth X is the custom-keyboard take on the Azoth: a 75% layout with a metal top cover, gasket mount, FR4 positioning plate and five layers of dampening - one silicone plus four PORON - that absorb pings and soften the typing feel. The switches are hot-swappable ROG NX Snow V2 mechanicals, linear with 1.8 mm actuation and 40 gf initial / 53 gf total force, sitting under dye-sublimated semi-translucent PBT keycaps on a south-facing PCB for wide keycap compatibility. It connects three ways: Bluetooth 5.1 to three devices, 2.4 GHz ROG SpeedNova wireless, or wired USB-C at a 1000 Hz report rate. The OLED display and three-way knob handle settings, volume and system info.
Key Features
-

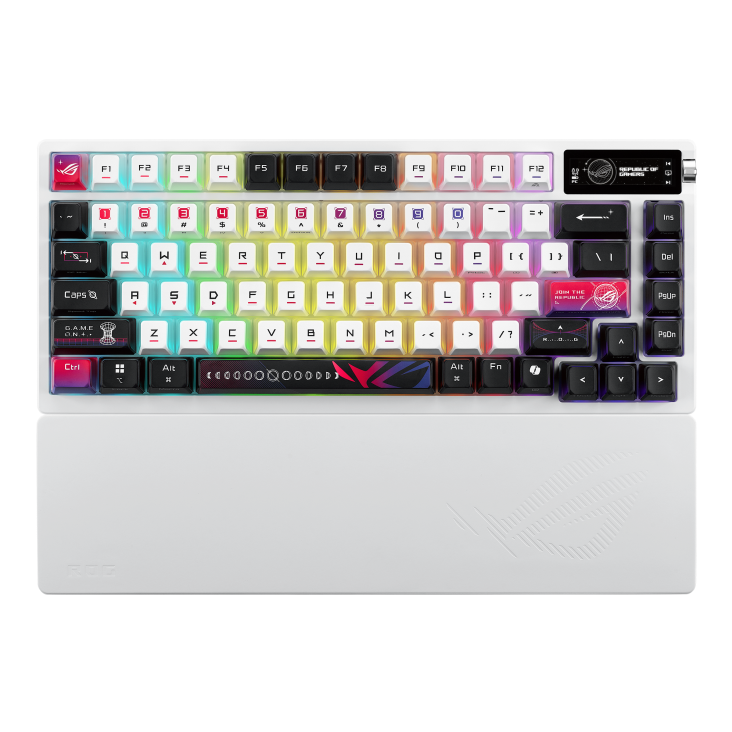

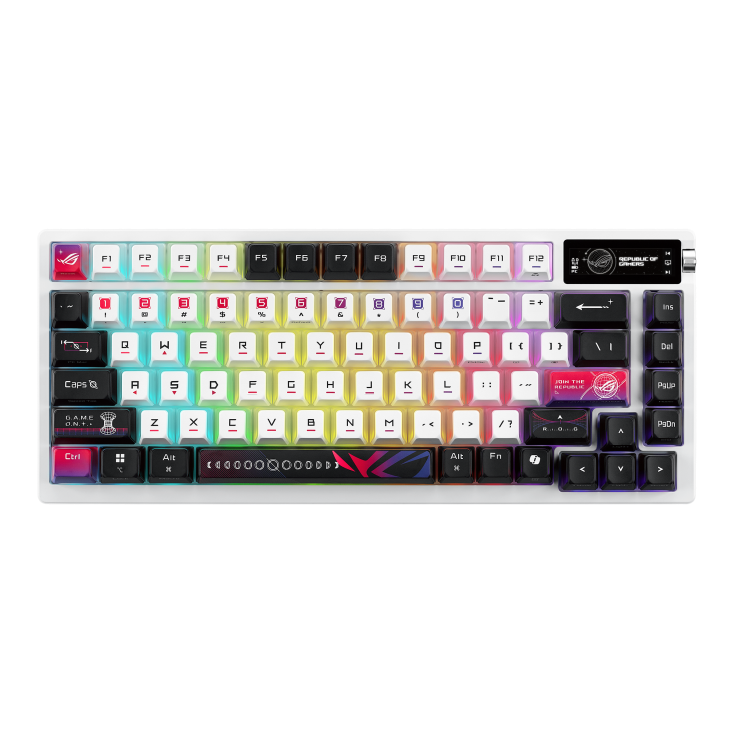

75% layout with OLED — Compact 75% board with a metal top cover, an OLED display and a three-way control knob.
-
Hot-swappable ROG NX Snow V2 — Linear switches with 1.8 mm actuation, 40 gf initial and 53 gf total force, pre-lubricated with an LED lens.
-
Gasket mount, five-layer dampening — One silicone plus four PORON layers with an FR4 plate tame ping and give a softer, lower-pitched typing sound.
-
South-facing PCB — Opens up keycap compatibility and keeps the RGB free of interference.
-
Tri-mode connection — Bluetooth 5.1 for up to three devices, 2.4 GHz ROG SpeedNova wireless, or wired USB-C.
-

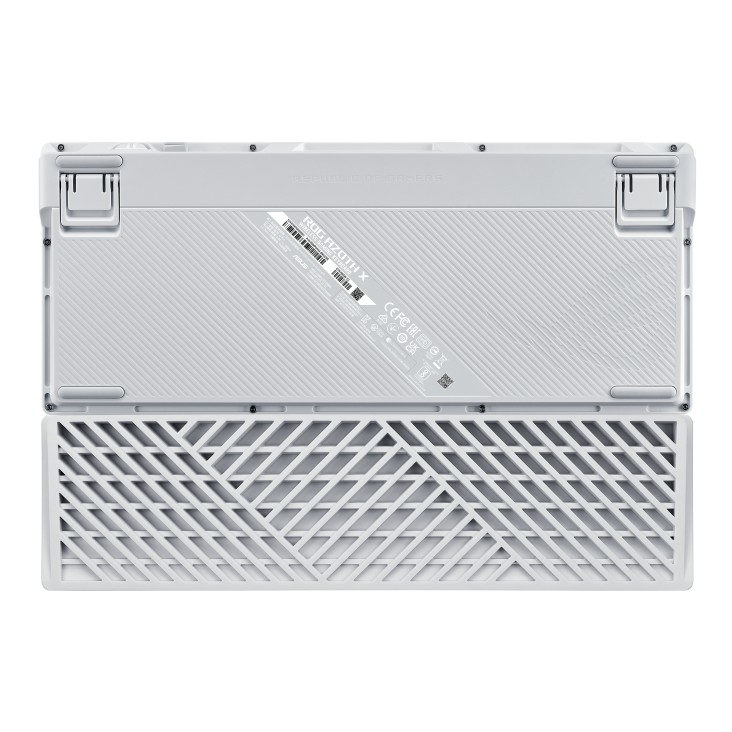

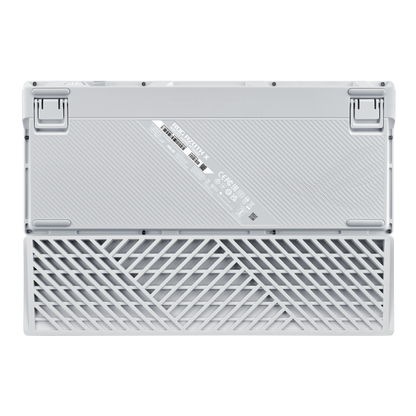

Ready to customise — Silicone wrist rest, three tilt angles, keycap and switch pullers, plus three spare ROG NX switches in the box.
Specifications
| Model |
ASUS ROG Azoth X |
| Layout |
75% |
| Switch |
Hot-swappable ROG NX Snow V2 mechanical (linear), 1.8 mm actuation, 40 gf initial and 53 gf total force |
| Keycaps |
Dye-sublimated semi-translucent PBT, Stellar-themed |
| Mount |
Gasket mount with FR4 positioning plate and five-layer dampening (1 silicone + 4 PORON) |
| PCB |
South-facing |
| Connectivity |
Tri-mode: Bluetooth 5.1 (up to 3 devices), 2.4 GHz ROG SpeedNova wireless, wired USB-C |
| Report Rate |
1000 Hz over USB |
| Display |
OLED display with three-way control knob |
| Lighting |
Per-key Aura Sync RGB |
| Dimensions |
325.4 x 136.2 x 40 mm |
| Weight |
1600 g with wrist rest |
| Colour |
White |
| OS Support |
Windows 11, macOS 10.11 or later |
| In the Box |
1 x keyboard, 1 x wrist rest, 1 x keycap puller, 1 x switch puller, 1 x Ctrl keycap, 3 x ROG NX switches, 1 x USB dongle, 1 x USB extender, 1 x USB-C to USB-A cable (2 m), 1 x ROG sticker, 1 x quick start guide, 1 x warranty booklet |
What’s in the box
1 x ROG Azoth X keyboard, 1 x silicone wrist rest, 1 x keycap puller, 1 x switch puller, 1 x Ctrl keycap, 3 x ROG NX switches, 1 x USB dongle, 1 x USB extender, 1 x USB-C to USB-A cable (2 m), 1 x ROG sticker, 1 x quick start guide, 1 x warranty booklet.
Who it’s for
Anyone who wants a wireless 75% board they can keep tuning - switch swaps and keycap changes without soldering - on a desk that looks the part.
