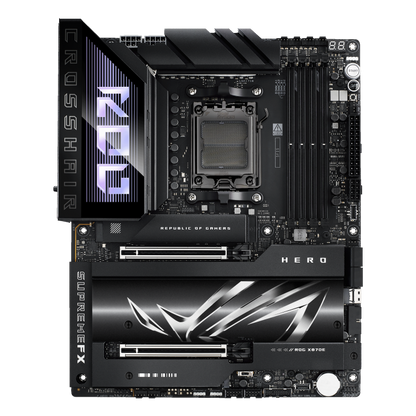

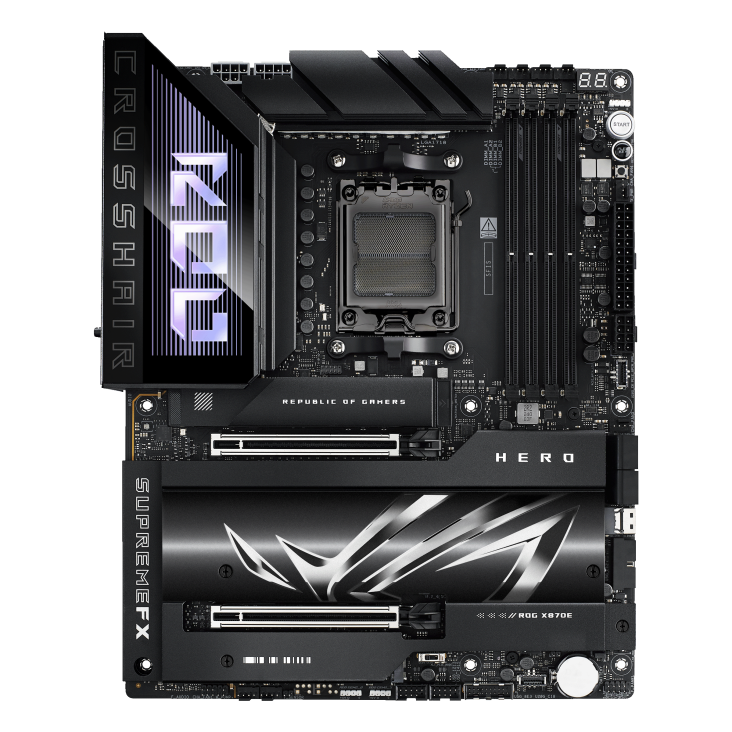

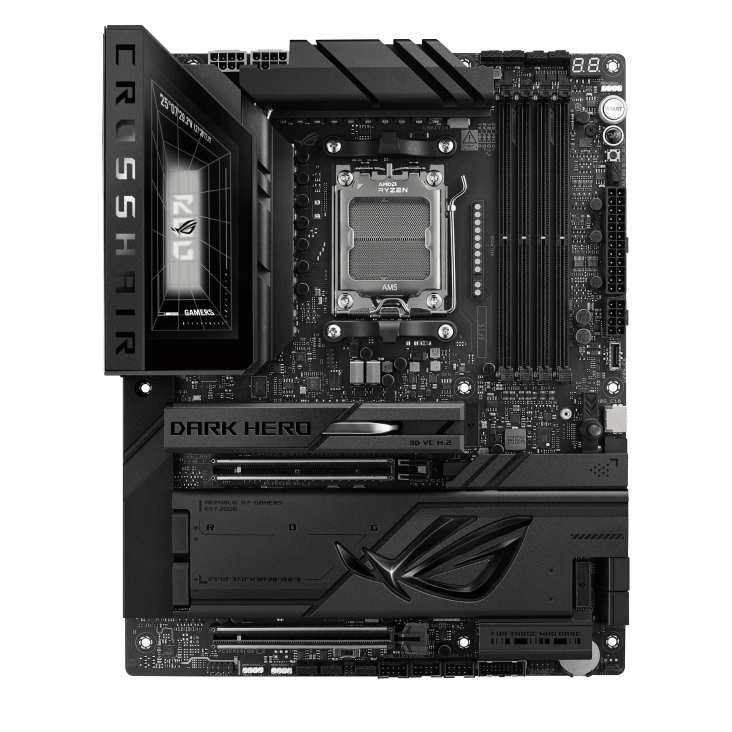

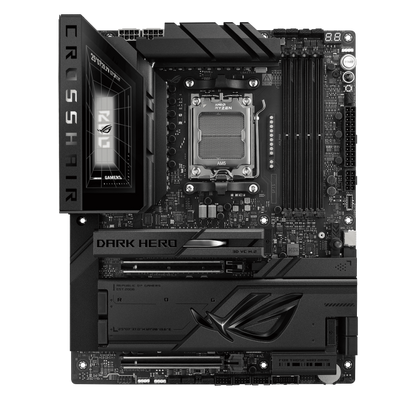

ASUS ROG CROSSHAIR X870E DARK HERO - AMD X870E ATX board for AM5.
The ASUS ROG CROSSHAIR X870E DARK HERO runs the AMD X870E chipset on AM5, carries 4 x DIMM slots, max. 256GB, DDR5 and takes Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports. Expansion is 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes). It measures 30.5 x 24.4cm.
Key Features
-
Memory - 4 x DIMM slots, max. 256GB, DDR5.
-
AMD X870E chipset - the platform's power delivery and I/O routed for AM5.
-
Expansion - 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes).
-
Storage - Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports.
-
Networking - 1 x Realtek 10Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard and "Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7* (802.11be) Supports.
-
Audio + rear I/O - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** - Impedance sense for front and rear and 2 x USB4 (40Gbps) ports (2 x USB Type-C ) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C ) 1 x HDMI port 1 x Wi-Fi module.
-
ATX form factor - 30.5 x 24.4cm.
Specifications
| Chipset + Socket |
AMD X870E Chipset + AM5 |
| Memory |
4 x DIMM slots, max. 256GB, DDR5 |
| Expansion Slots |
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) |
| Storage |
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports |
| Networking |
1 x Realtek 10Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard + "Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7* (802.11be) Supports |
| Audio + Rear I/O |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** - Impedance sense for front and rear + 2 x USB4 (40Gbps) ports (2 x USB Type-C ) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C ) 1 x HDMI port 1 x Wi-Fi module |
| Form Factor |
ATX (30.5 x 24.4cm) |
What's in the box
Motherboard, 4 x SATA 6Gb/s cables, 1 x DDR5 fan holder, 1 x ROG assistant fan (60mm), 1 x Screw package for cooling kit (+ more).
Who it's for
An ATX board for AM5 builds, with room for 4 x DIMM slots.
