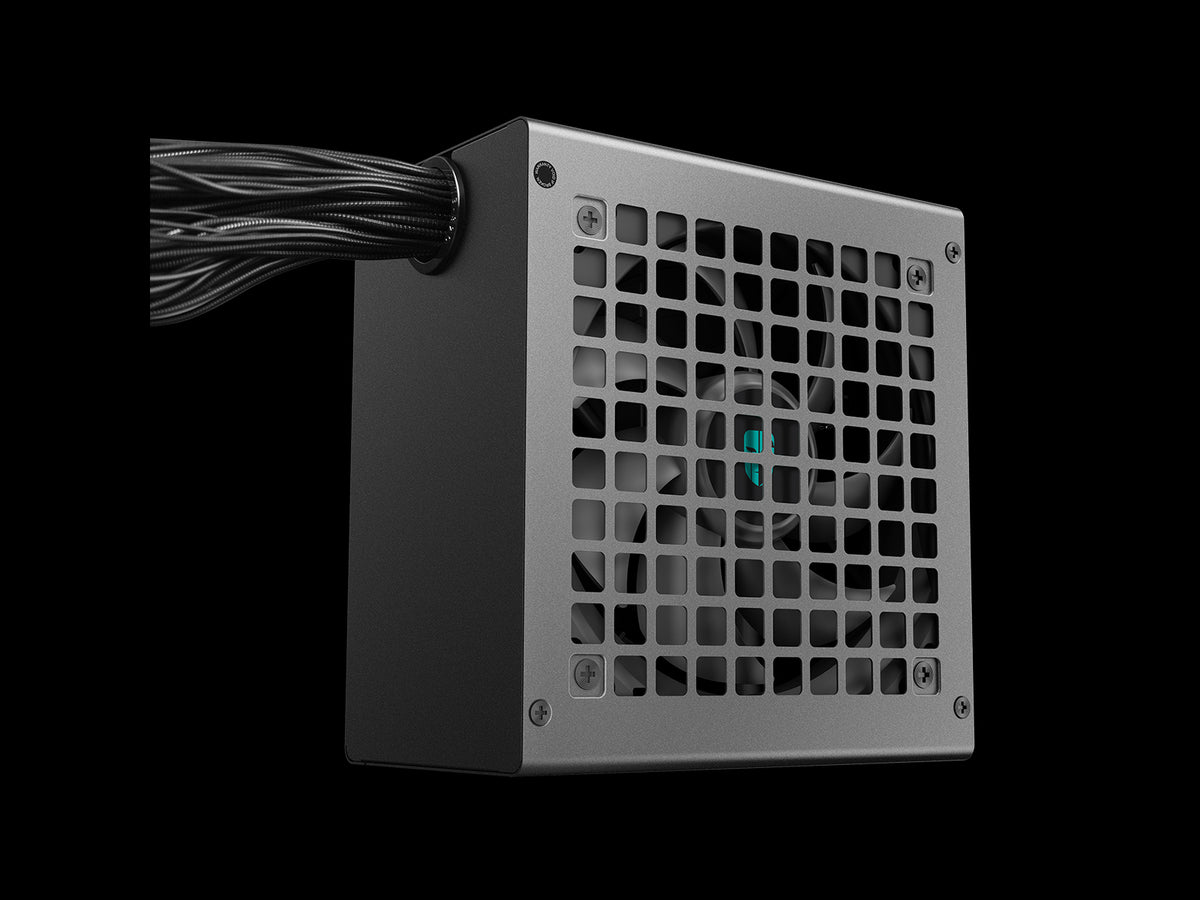

DeepCool PF750D V2 - 750W 80 PLUS Silver with native ATX 3.1 certification and a 200% power excursion.

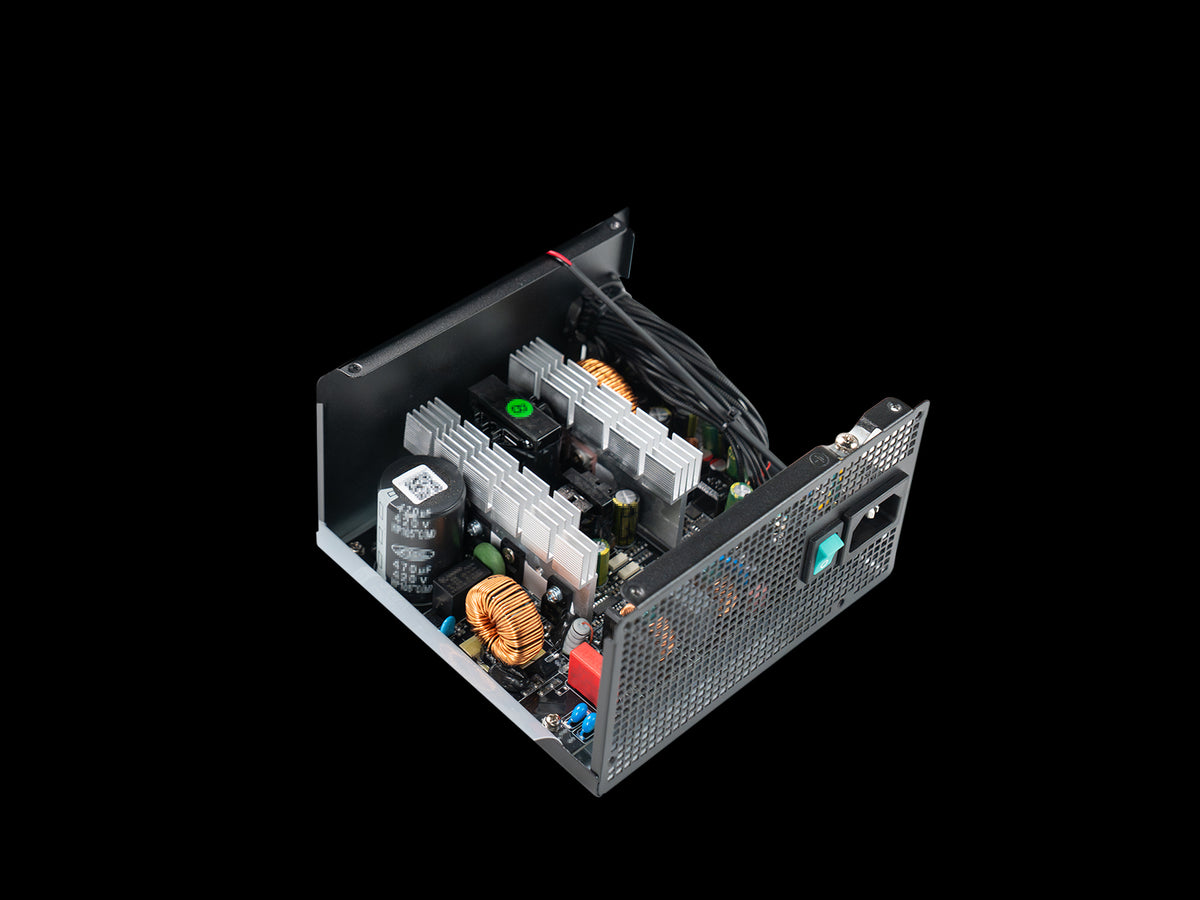

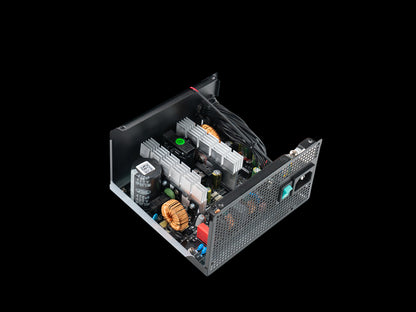

The PF750D V2 is DeepCool's value 750W unit, now certified to ATX12V V3.1: it can supply up to 200% of its rated power to ride out a graphics card transient, and it is certified 80 PLUS 230V EU Silver, Cybenetics 230V Silver and PPLP 230V Silver. Inside there are Taiwanese bulk and electrolytic capacitors, an active PFC front end with a double-forward and DC-to-DC topology, and a 120mm hydro bearing fan. It is non-modular, measures 150 x 140 x 86mm, holds up for 16ms or more at 80% load, and carries an eight-way protection set with a 100,000 hour MTBF.
Key Features
-
ATX 3.1 certified - Certified under the Intel ATX 3.1 standard, with up to 200% power excursion for GPU spikes.
-
Triple-certified efficiency - 80 PLUS 230V EU Silver, Cybenetics 230V Silver and PPLP 230V Silver, at up to 90% efficiency under typical (50%) load.
-
Taiwanese capacitors - Premium Taiwanese bulk and electrolytic capacitors rather than the generic parts common at this price.
-
Active PFC + double forward + DC-to-DC - A stable 750W rail design with a hold-up time of 16ms or more at 80% load.
-
120mm hydro bearing fan - Rated PPLP Medium Load C for noise, so it stays quiet in a mid-range build.
-
Eight-way protection - OPP, OVP, SCP, OTP, OCP, UVP, SIP and NLO, with a 100,000 hour MTBF.
-
150 x 140 x 86mm - A standard ATX footprint for mid-tower and mini-ITX builds.
Specifications
| Total Output |
750W |
| Type |
ATX12V V3.1 (ATX 3.1, up to 200% power excursion) |
| Efficiency Certification |
80PLUS 230V EU Silver / Cybenetics 230V Silver / PPLP 230V Silver |
| Noise Certification |
PPLP Medium Load C |
| Dimensions (W x L x H) |
150 x 140 x 86mm |
| Fan |
120 x 120 x 25mm Hydro Bearing |
| Topology |
Active PFC + Double Forward + DC to DC |
| Capacitors |
Taiwanese bulk and electrolytic capacitors |
| Efficiency |
Up to 90% under typical load (50% loading) |
| Hold-up Time |
16ms or more at 80% load |
| Protections |
OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO |
| MTBF |
100,000 hours |
| Warranty |
5YR Warranty |
What's in the box

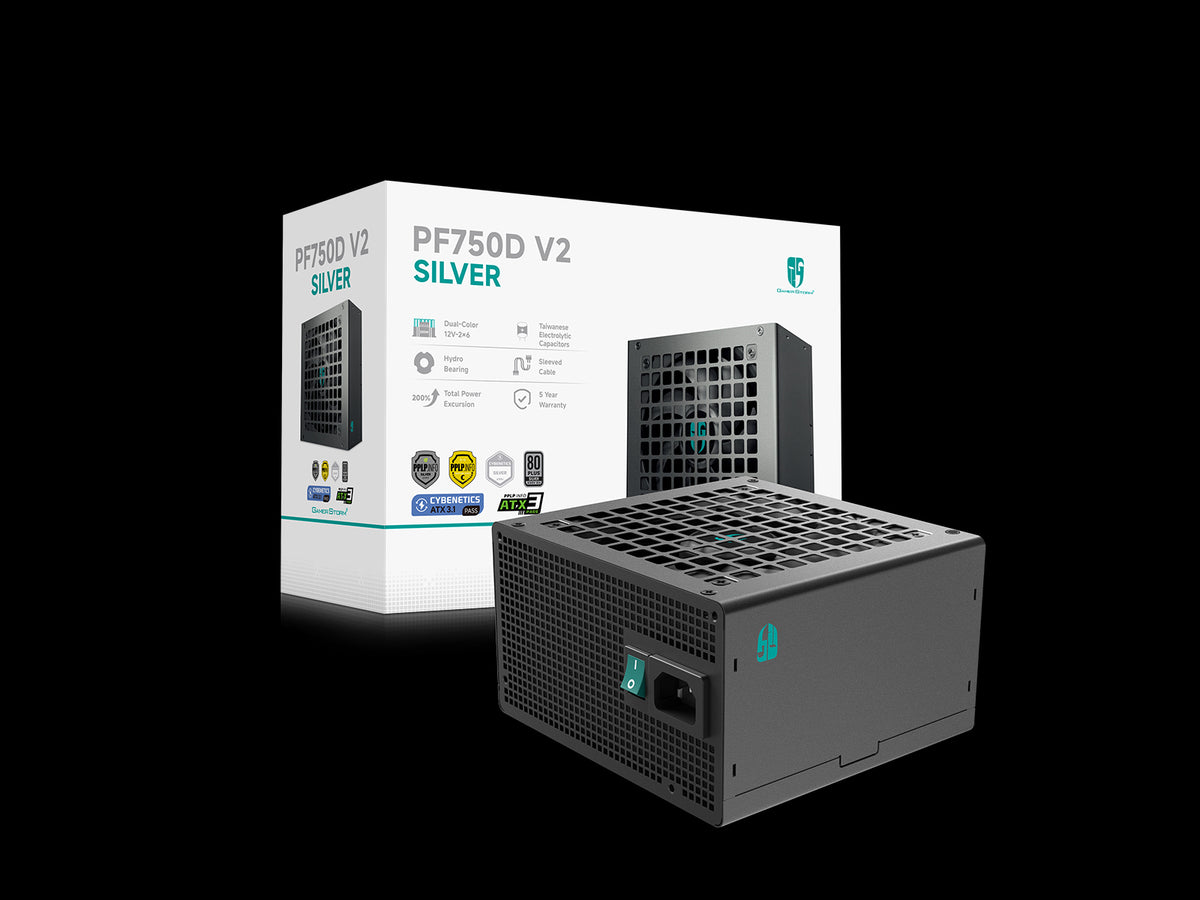

1 x PF750D V2 power supply, fixed cable set, mounting screws, PF-D V2 series manual and warranty information.
Who it's for
A budget 750W build that still wants ATX 3.1 headroom - the excursion rating and the Silver certifications are what separate this from a plain Bronze value unit.
