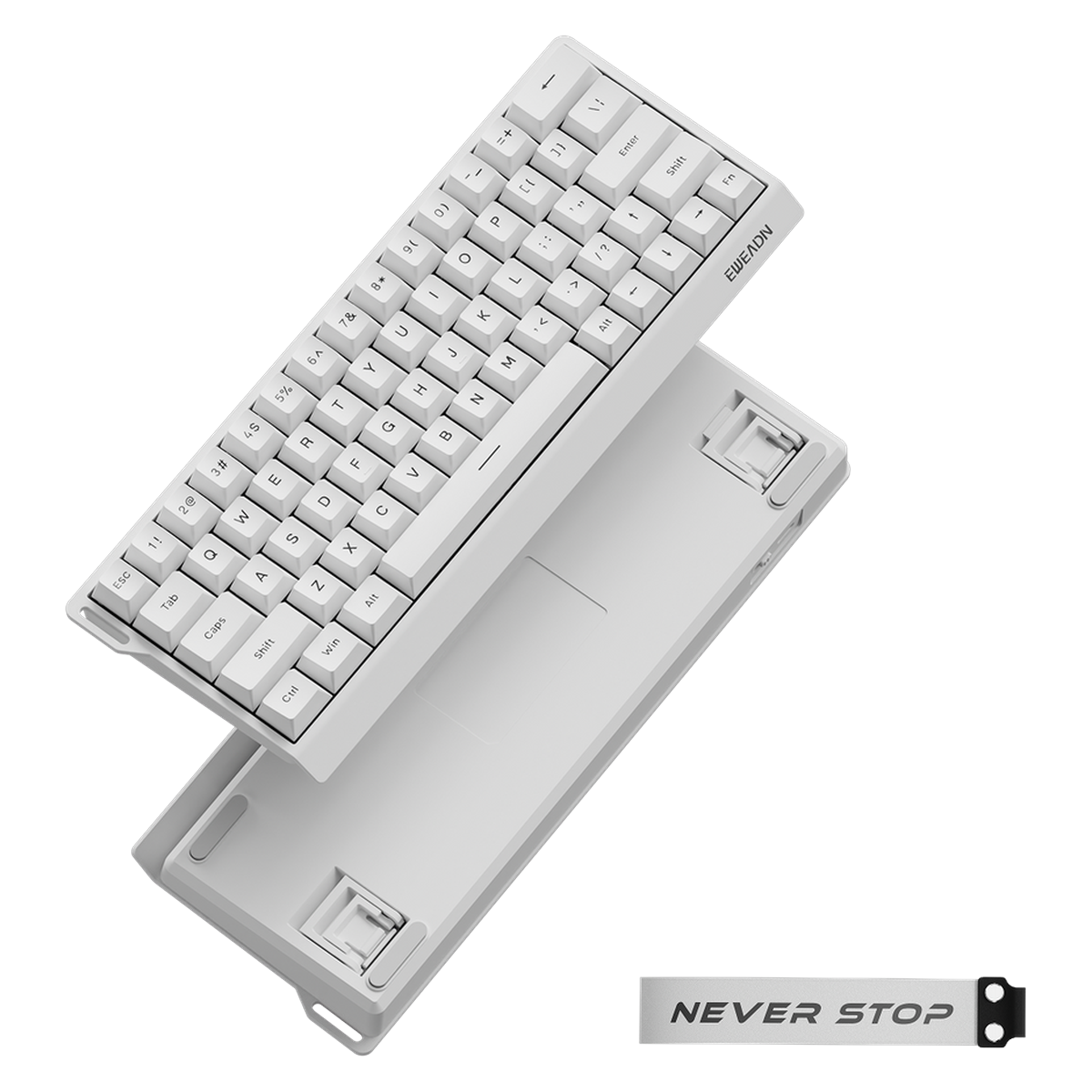

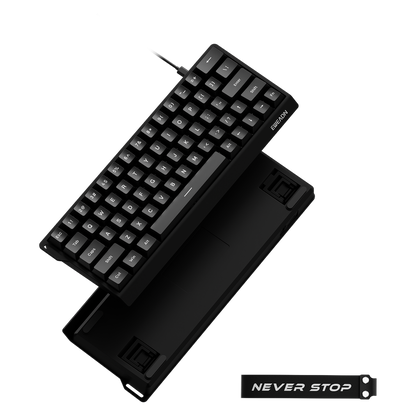

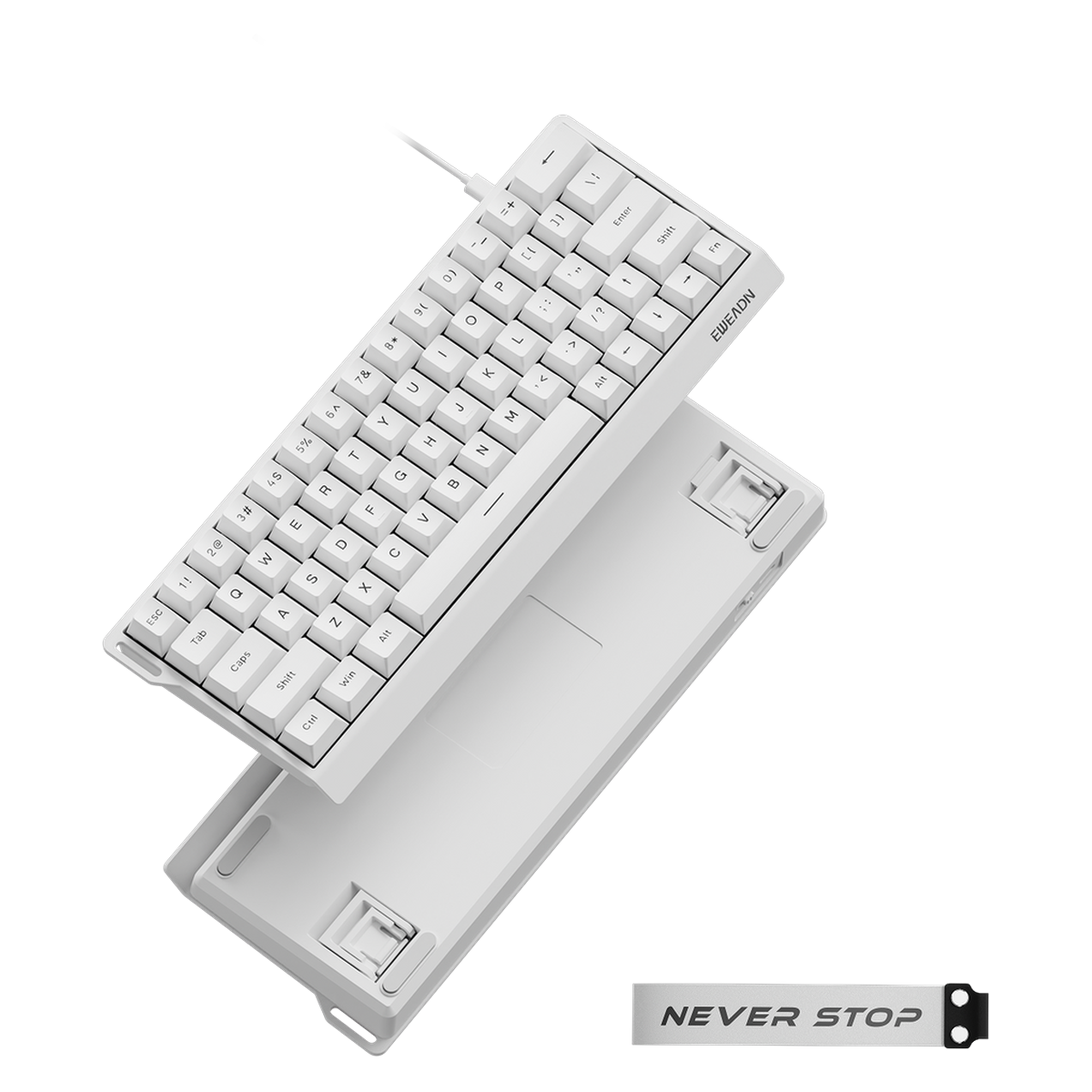

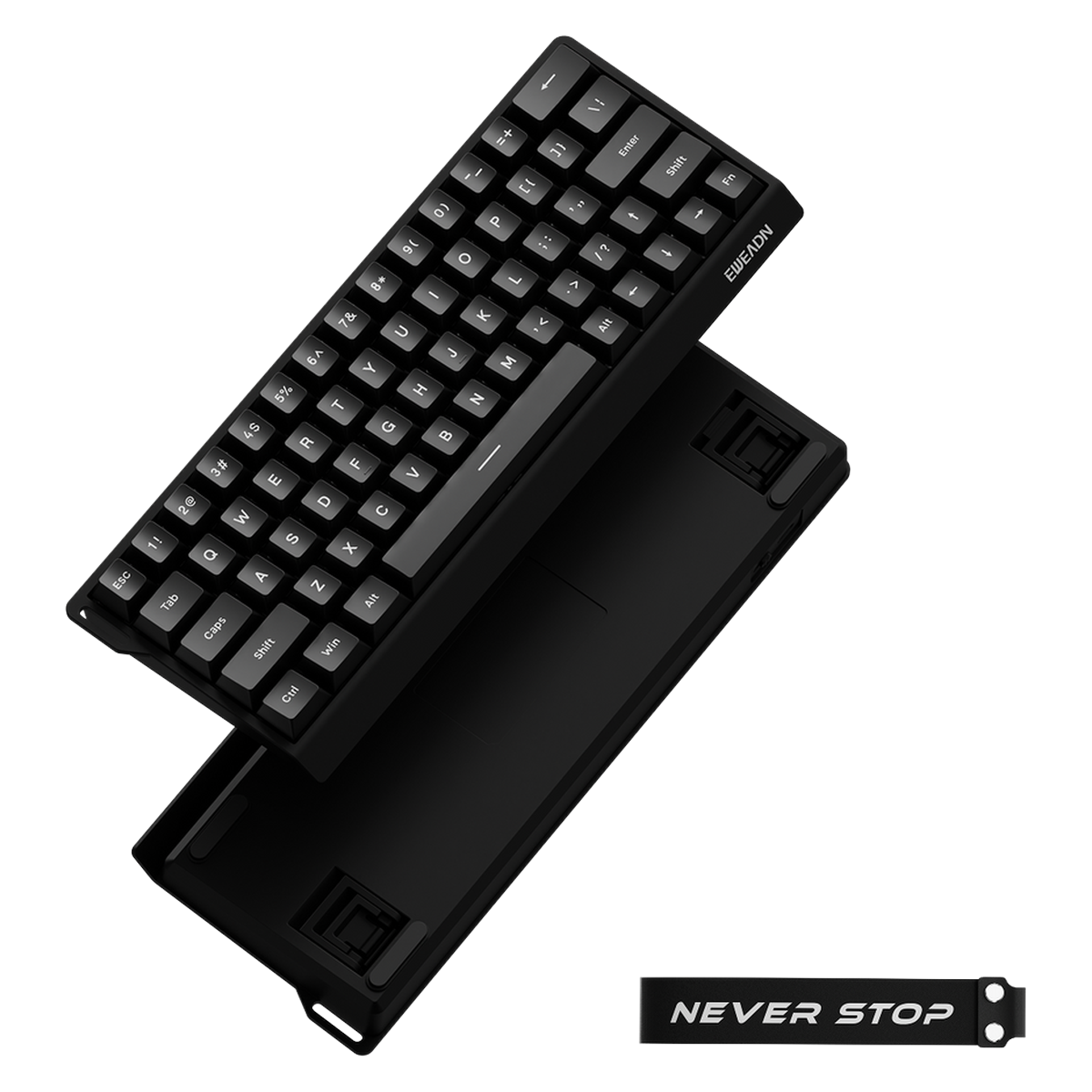

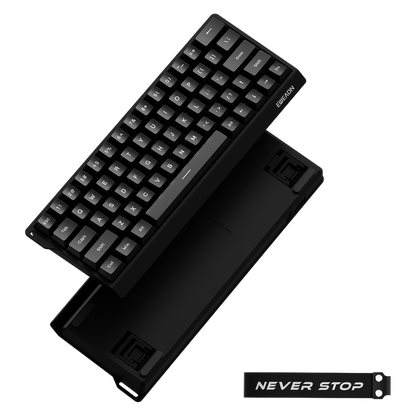

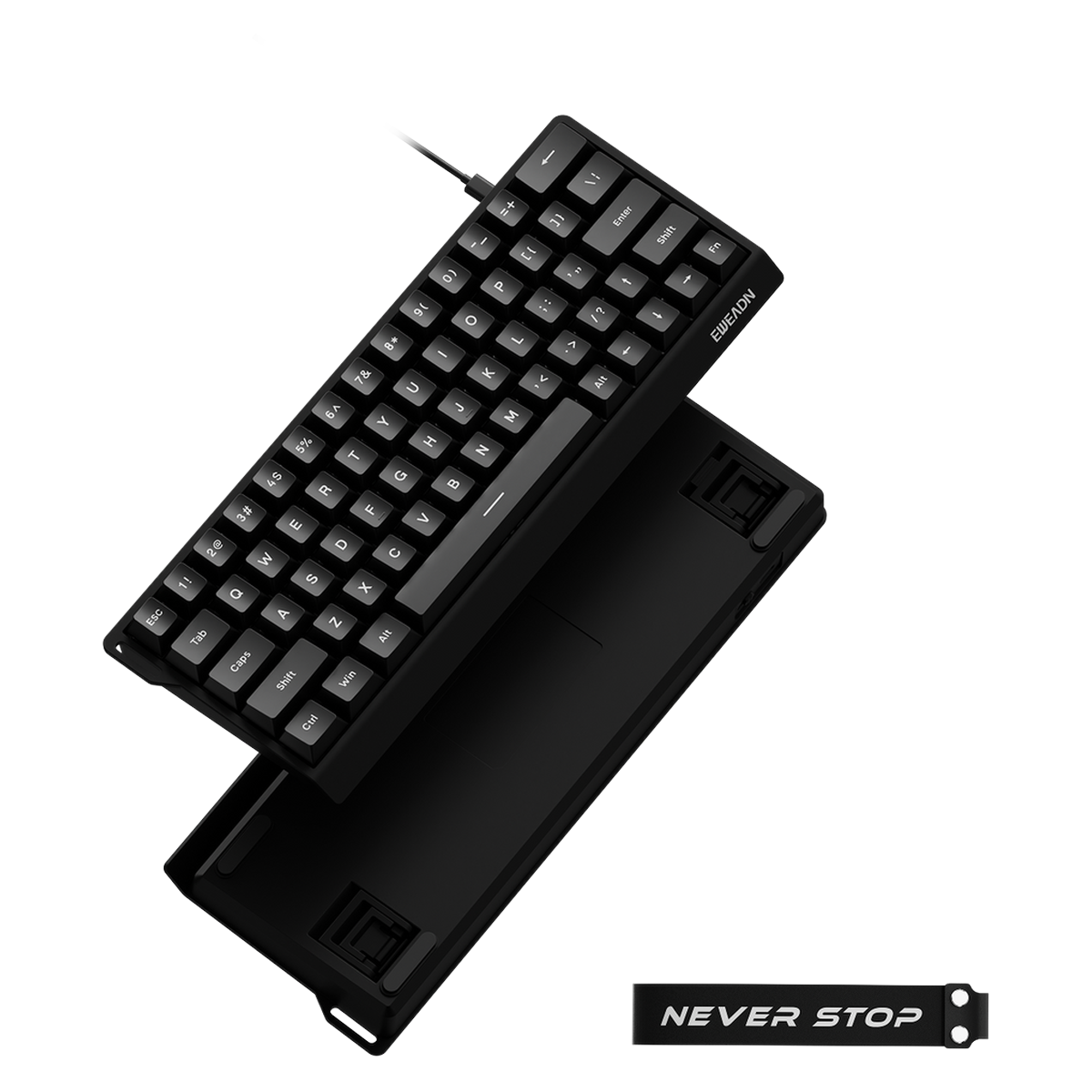

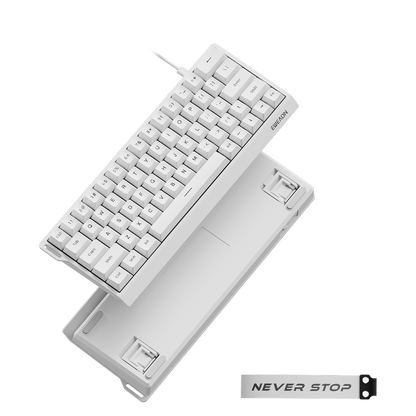

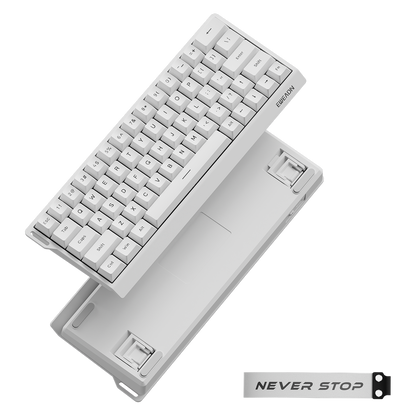

EWEADN DK63 STAR - a 63-key magnetic keyboard with Rapid Trigger, a hot-swap PCB and an RGB light box.
The DK63 STAR is EWEADN's small magnetic board: 63 keys with dedicated arrow keys, Gateron Magneto hall-effect switches in hot-swap sockets, and Rapid Trigger down to 0.005mm so a key re-arms the instant it lifts instead of waiting for a fixed reset point. SOCD, DKS, MPT, MT, TGL, END and RS are configured per key in the web-based driver, a wired USB-C connection keeps input latency at 2ms, and the RGB light box throws the glow out of the side of the frame. Double-shot ABS keycaps, a decorative strap and an ergonomic typing angle finish it off.
Key Features
-
63-key compact layout — Arrow keys kept, the rest of the desk freed up for mouse movement.
-
Gateron Magneto magnetic switches — Contact-free hall-effect sensing, 30 ± 10 gf, 3.5 ± 0.2mm travel.
-
Rapid Trigger to 0.005mm — Re-arms on the way up, so repeated taps register without a fixed reset distance.
-
Full gaming key set — SOCD, DKS, MPT, MT, TGL, END and RS, set per key in the driver.
-
Hot-swap FR-4 PCB — 1.2mm non-slotted board, so switches can be pulled and changed without soldering.
-
RGB light box — 16.8M colours with a dedicated light box for the underglow.
-
2ms wired USB-C — Wired connection with no polling guesswork and no battery to charge.
Specifications
| Model |
EWEADN DK63 STAR |
| Layout |
63 Keys (Compact with Arrow Keys) |
| Switches |
Gateron Magneto Magnetic (HE), Hot-Swap |
| Switch Force |
30 ± 10 gf |
| Switch Travel |
3.5 ± 0.2 mm |
| Switch Life |
100 Million Keystrokes |
| Rapid Trigger |
Up to 0.005mm RT Precision, 0.01mm Actuation Steps |
| Gaming Functions |
SOCD, DKS, MPT, MT, TGL, END, RS |
| Latency |
2ms Wired |
| PCB |
FR-4 1.2mm, Hot-Swap, Non-Slotted |
| Keycaps |
Double-Shot ABS |
| Lighting |
RGB Light Box, 16.8M Colours |
| Connection |
Wired USB-C |
| Extras |
Decorative Strap, Ergonomic Typing Angle, Web + Local Driver |
| Weight |
700g |
| Warranty |
1 Year Warranty |
What’s in the box
1 x EWEADN DK63 STAR keyboard, 1 x USB-C cable, documentation.
Who it’s for
Players who want a small magnetic board with Rapid Trigger and per-key tuning, plus a compact typing layout - at a fraction of what a flagship hall-effect board costs.
