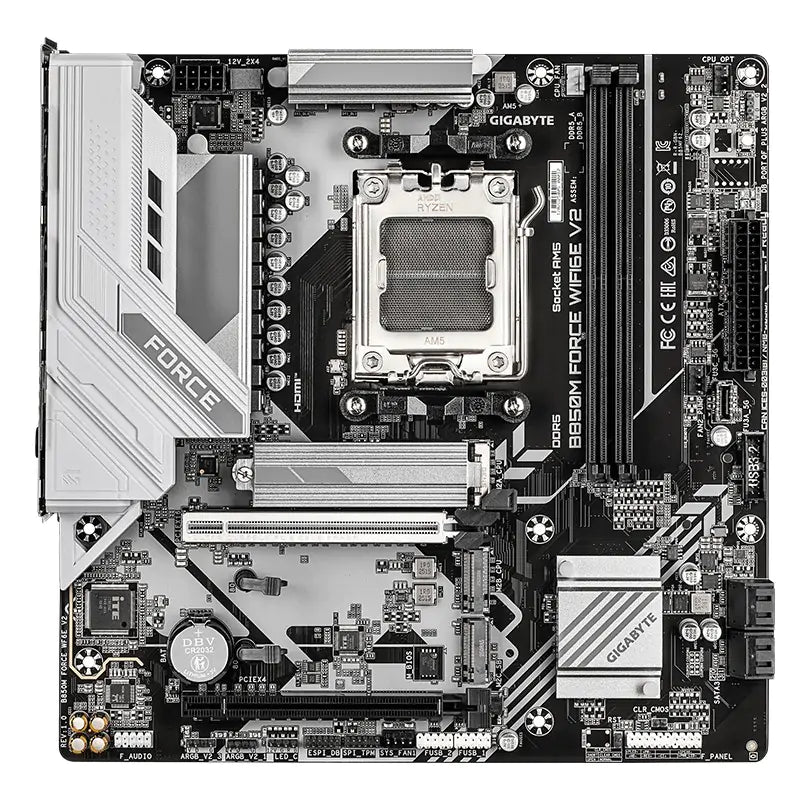

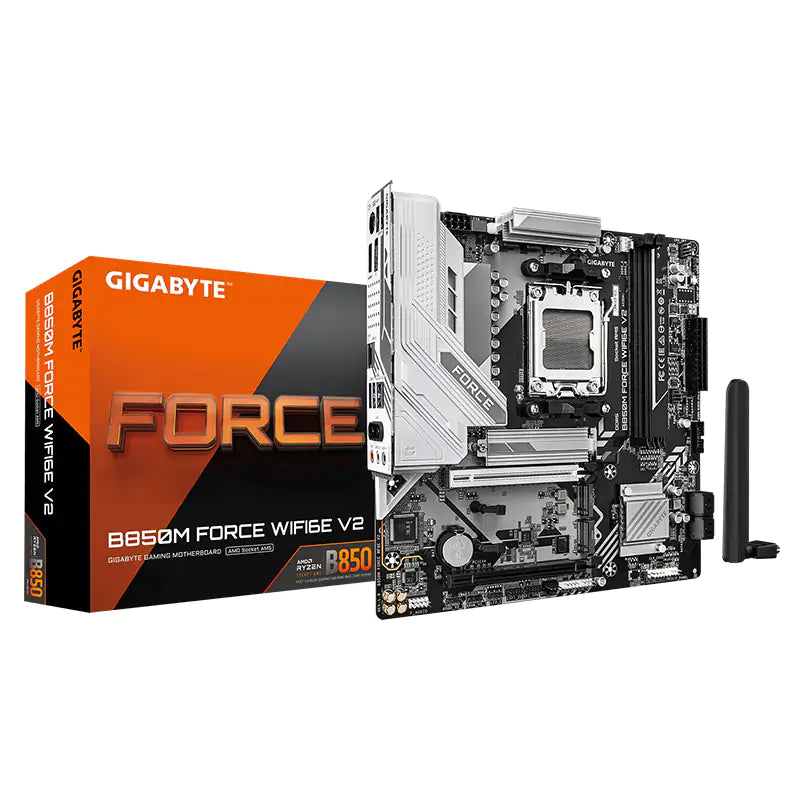

GIGABYTE B850M FORCE WIFI6E V2 - high memory clocks on a compact B850 board.
The GIGABYTE B850M FORCE WIFI6E V2 is an AMD B850 micro-ATX board for Socket AM5 supporting Ryzen 9000, 8000 and 7000 series processors. Its two DDR5 DIMM slots are rated up to 9600 MT/s with EXPO or XMP, and it provides a PCIe 5.0 x16 slot, three M.2 connectors (one Gen5, two Gen4) and four SATA 6Gb/s ports. Networking is MediaTek Wi-Fi 6E and Bluetooth 5.3 with Realtek 2.5Gb Ethernet, and the board measures 24.4 x 24.4cm.
Key Features
-
DDR5 up to 9600 MT/s OC — The highest memory rating in this batch, on a two-DIMM board that suits tighter timings.
-
PCIe 5.0 x16 + 3x M.2 — M2A runs Gen5 x4, M2B Gen4 x4, M2C Gen4 x2, with RAID 0/1/5/10 for NVMe on Ryzen 9000.
-
Wi-Fi 6E + BT 5.3 — MediaTek MT7902 tri-band Wi-Fi 6E, plus Realtek 2.5GbE LAN.
-
HDMI 2.1 and DisplayPort 1.4 — HDMI up to 4096x2160 at 60Hz, DisplayPort up to 3840x2160 at 144Hz.
-
Q-Flash Plus — Update the BIOS from a USB stick without a CPU installed.
-
Micro ATX, 24.4 x 24.4cm — A square mATX layout that fits most compact cases.
Specifications
| Chipset + Socket |
AMD B850 Chipset + AM5 (Ryzen 9000/8000/7000) |
| Memory |
2x DDR5 DIMM, up to 128GB, 9600 MT/s OC |
| Expansion Slots |
1x PCIe 5.0 x16 + 1x PCIe 4.0 x4 |
| Storage |
3x M.2 (PCIe 5.0 x4 + PCIe 4.0 x4 + PCIe 4.0 x2) + 4x SATA 6Gb/s |
| Networking |
Wi-Fi 6E (MediaTek MT7902) + Bluetooth 5.3 + 2.5GbE LAN |
| Audio + Rear I/O |
7.1-Channel HD Audio + USB-C 3.2 Gen1 + USB 3.2 Gen2 Type-A + HDMI 2.1 |
| Form Factor |
Micro ATX (24.4 x 24.4cm) |
Who it's for
A good fit for a small-form-factor AM5 build that still wants Gen5 storage and fast memory.
