GIGABYTE GeForce RTX 5070 Ti WINDFORCE OC SFF 16G - 5070 Ti power, SFF packaging.
The GIGABYTE GeForce RTX 5070 Ti WINDFORCE OC SFF 16G pairs 16GB of GDDR7 on a 256-bit bus at 28Gbps with 8960 CUDA cores boosting to 2497MHz (2452MHz reference). It runs from a 16-pin connector on a 750W PSU and measures 304 x 126 x 50mm.
Key Features
-
8960 CUDA Cores — 2497MHz factory boost against a 2452MHz reference.
-
16GB GDDR7 at 28Gbps — A 256-bit memory bus for 1440p and 4K workloads.
-

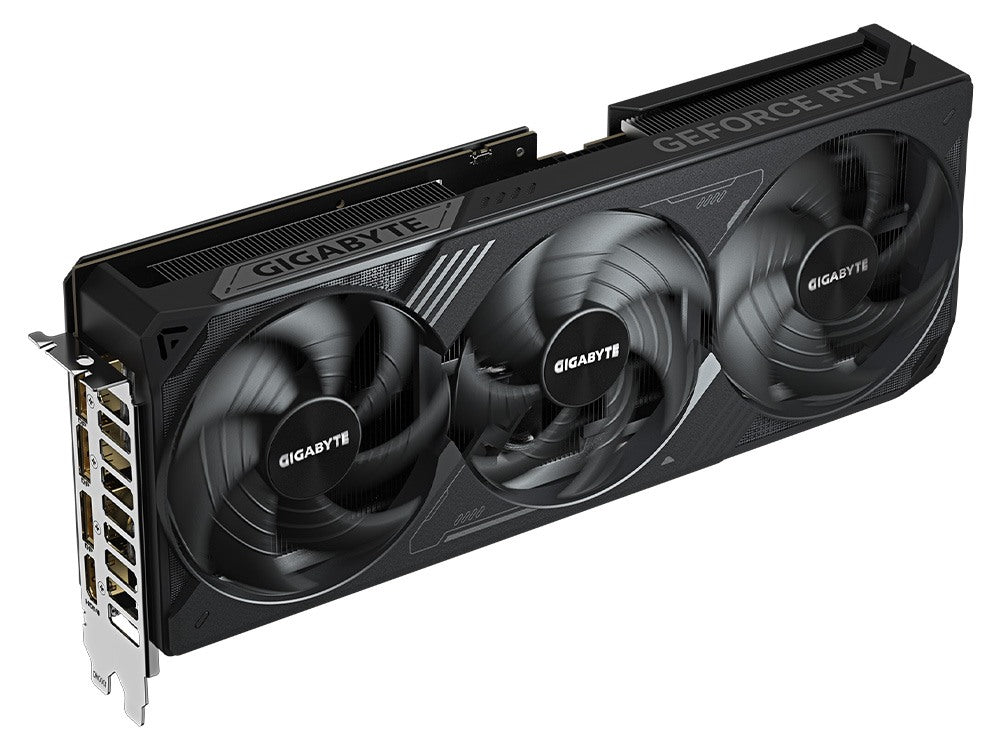

SFF-focused WINDFORCE — GIGABYTE's compact take on its mainstream cooler, at 304 x 126 x 50mm.
-
16-pin power — 750W PSU recommended, and a 12V-2x6 to 2x PCIe 8pin adapter is included.
-
Blackwell + DLSS 4 — DLSS 4, hardware ray tracing and the RTX 50 series AI features.
-
Outputs — 3x DisplayPort 2.1b and 1x HDMI 2.1b over PCIe 5.0.
Specifications
| GPU + Memory |
NVIDIA GeForce RTX 5070 Ti 16GB GDDR7 |
| Boost Clock |
2497MHz OC Boost (2452MHz Reference) |
| Shaders |
8960 CUDA Cores |
| Memory Speed + Bus |
28Gbps + 256-bit |
| Interface + Display Outputs |
PCIe 5.0 + 3x DisplayPort 2.1b + 1x HDMI 2.1b |
| Power + Dimensions |
750W PSU + 1x 16-pin + 304 x 126 x 50mm |
| Architecture + Features |
Blackwell Architecture + DLSS 4 + Ray Tracing |
| In the Box |
VGA Manual + 1x 12V-2x6 to 2x PCIe 8pin Adapter + Versatile VGA Holder |
What's in the box

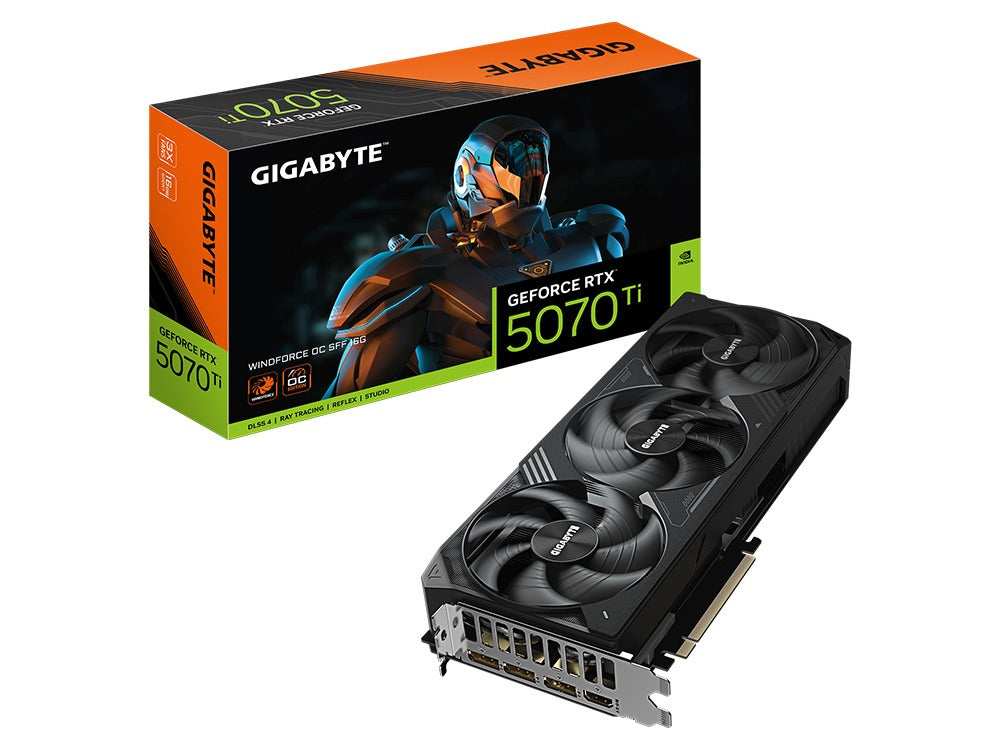

Graphics card, VGA Manual, 1x 12V-2x6 to 2x PCIe 8pin Adapter and Versatile VGA Holder.
Who it's for
Built for 1440p high-refresh and 4K gaming where you want 16GB without a triple-slot monster.
