IQUNIX EV63 Silver Blade RS with Magnetic X Ultra switches - 64 keys, hall-effect switches and a 0.01mm Rapid Trigger.

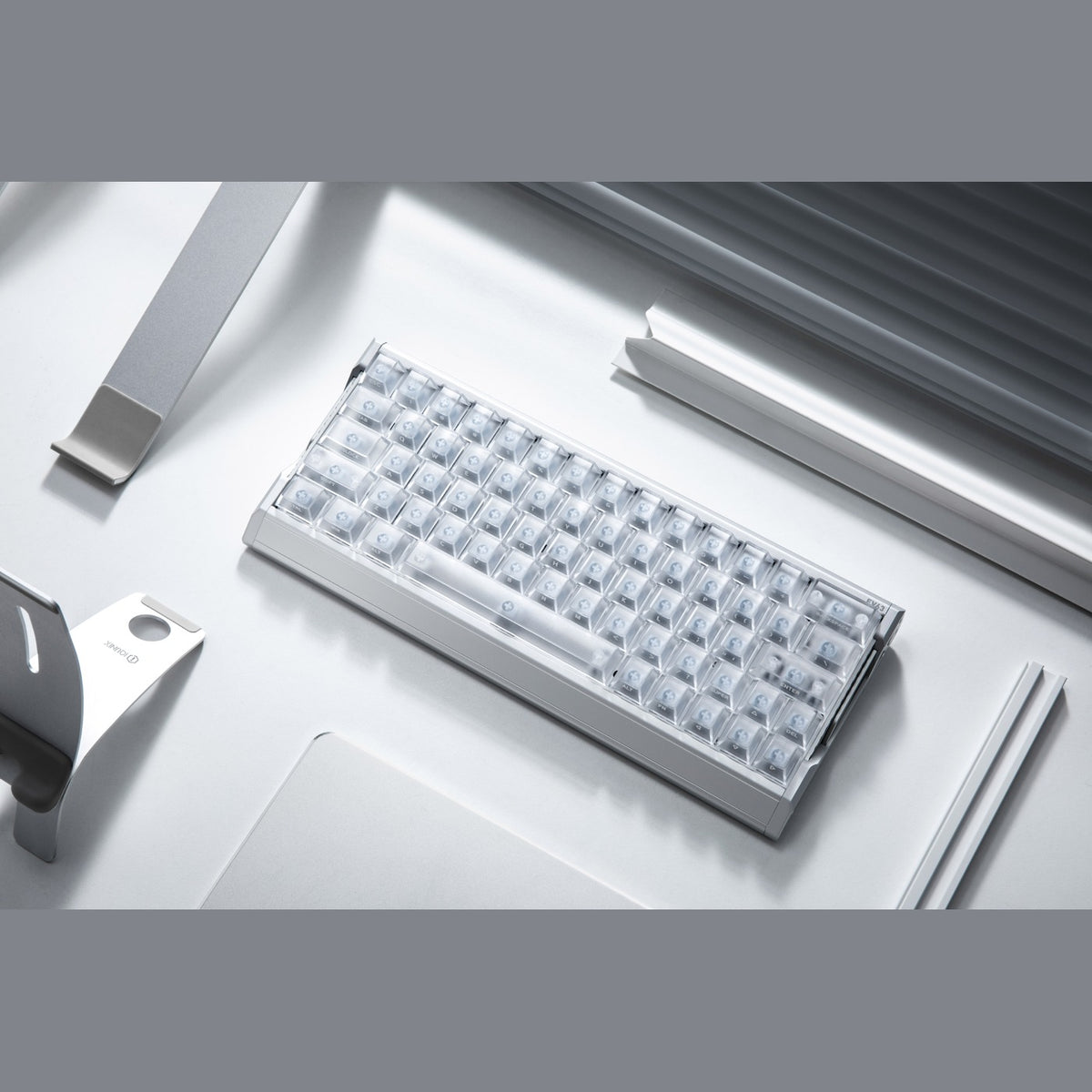

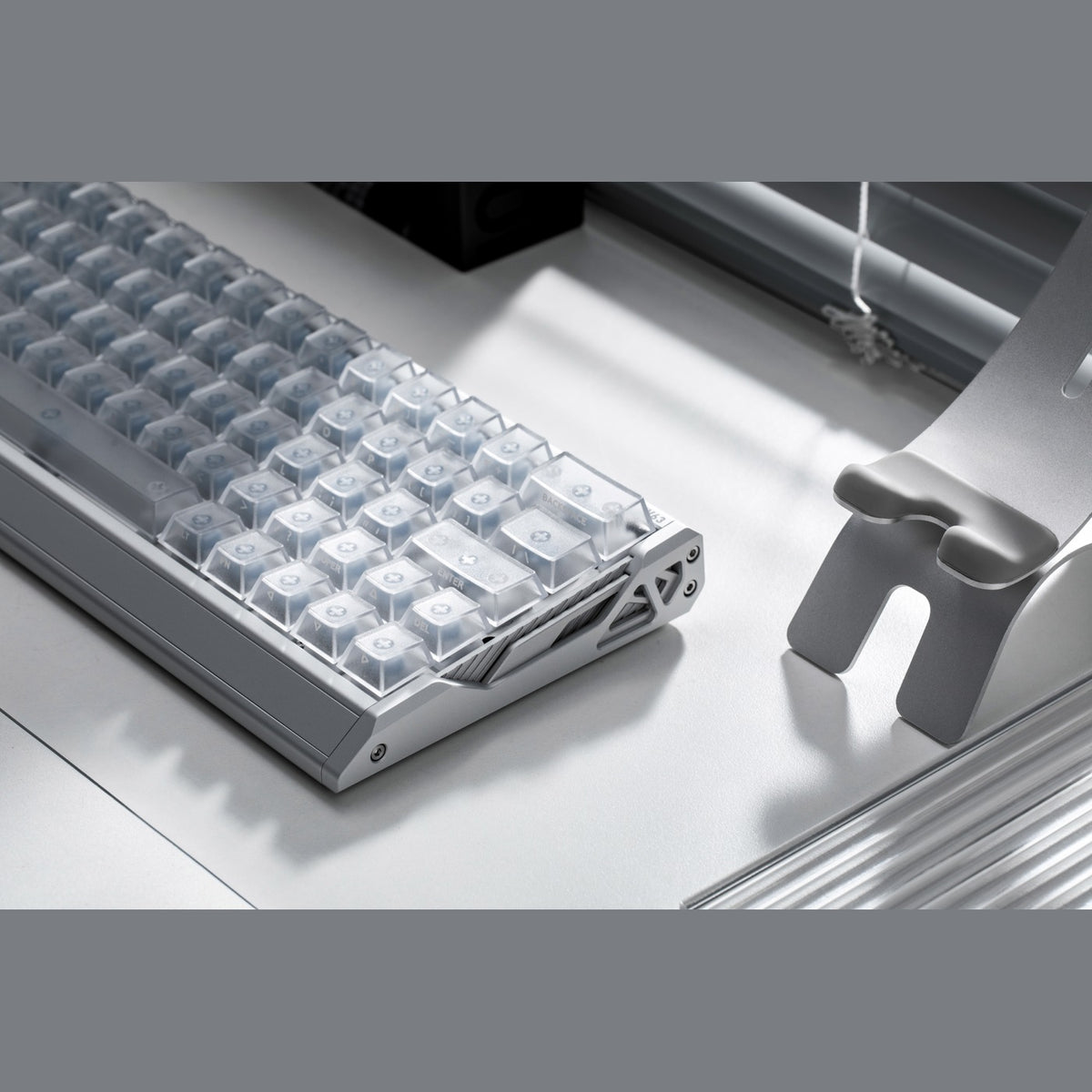

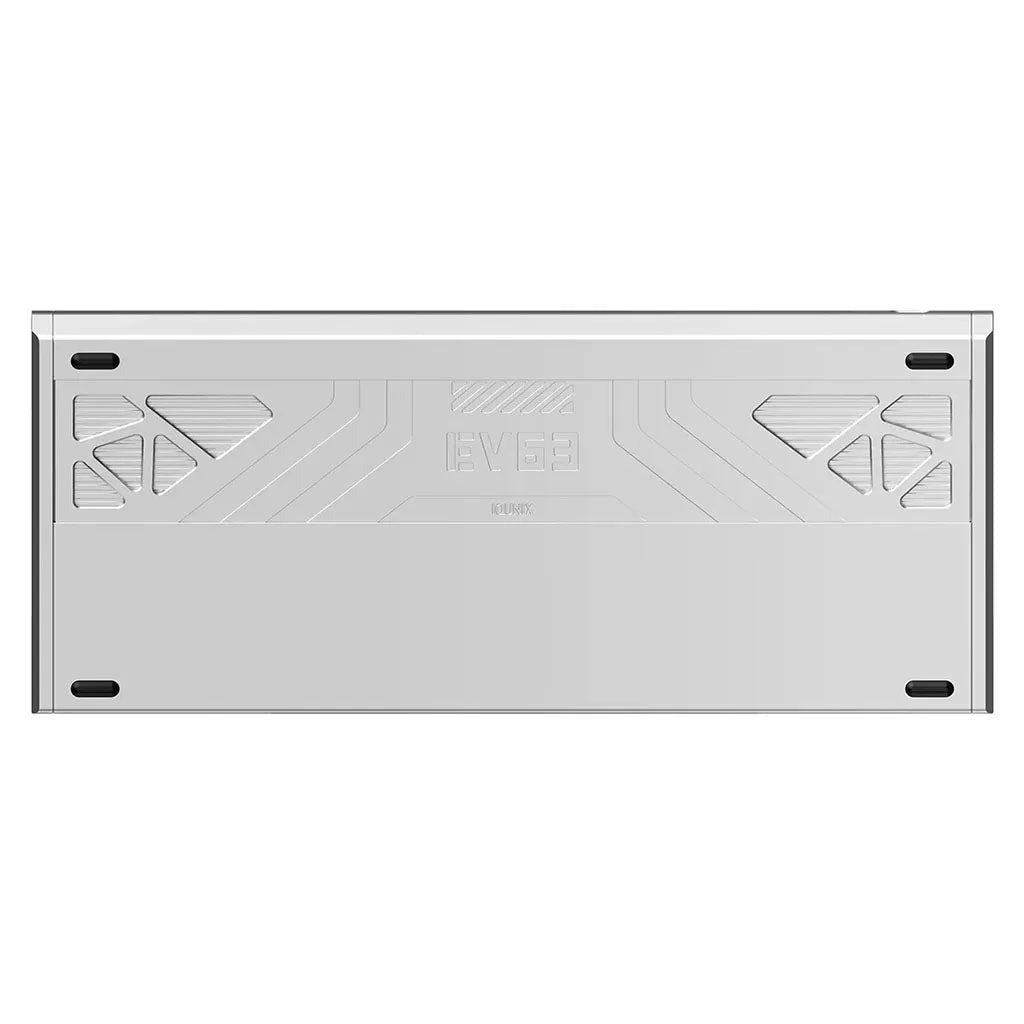

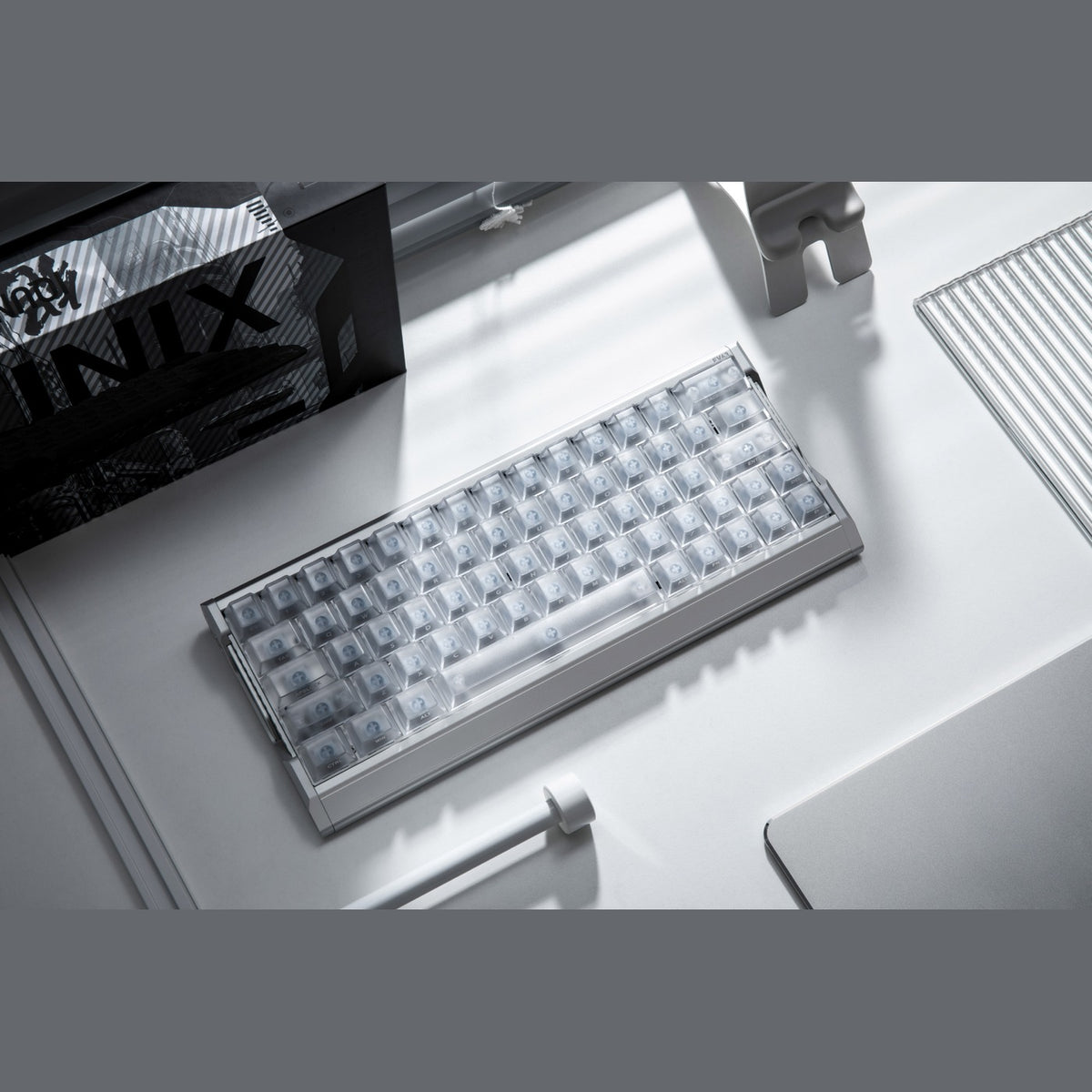

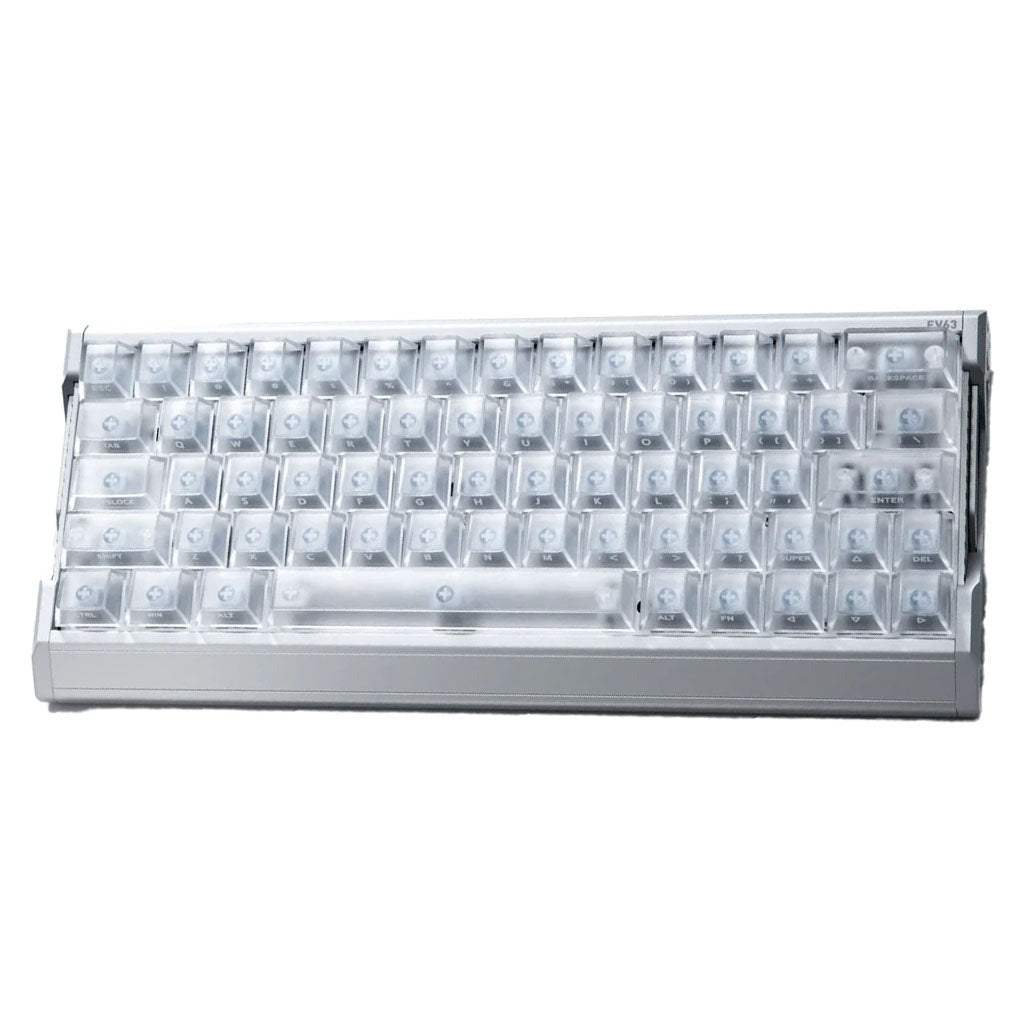

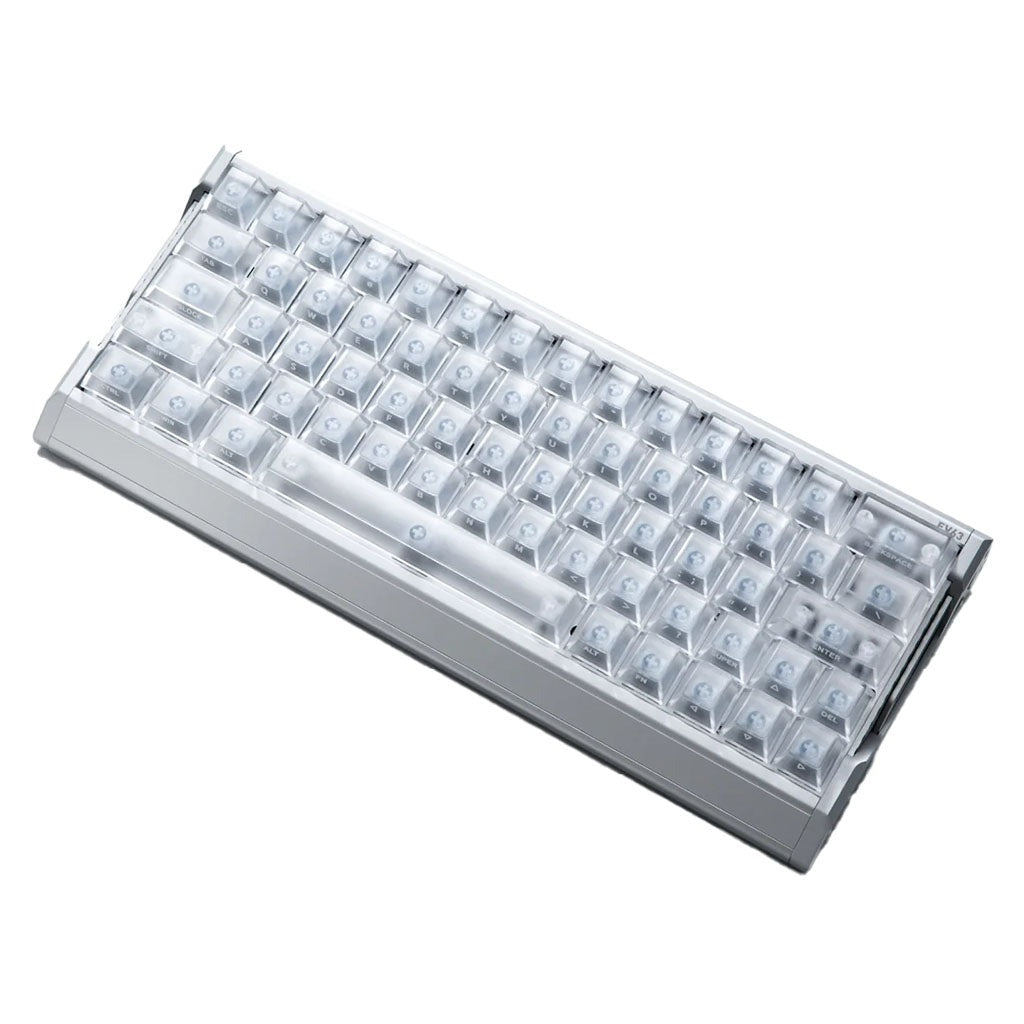

The Silver Blade RS is the 60% EV63 (64 keys) in a silver CNC-machined aluminium case with a forged carbon fibre front housing and frosted translucent PC keycaps. It ships with IQUNIX's Magnetic X Ultra hall-effect switches - 36gf initial, 48gf bottom-out, 3.5mm total travel, factory lubed and rated for 100 million keystrokes - in hot-swap sockets on an eSport tray mount. Rapid Trigger works at 0.01mm with a zero dead zone, actuation adjusts per key from 0.01mm to 3.5mm, and the board polls at 8000Hz with a 16000Hz scan rate and 0.125ms latency over wired USB Type-C.
Key Features
-
Silver Blade RS finish — Silver CNC-machined aluminium case with a forged carbon fibre front edge and frosted translucent PC keycaps that diffuse the RGB.
-
60% layout, 64 keys — A compact ANSI layout with arrow keys, leaving room for wide mouse movement.
-
IQUNIX Magnetic X Ultra switches — Hall-effect, 36gf initial and 48gf bottom-out over 3.5mm of travel, factory lubed, 100 million+ keystrokes, hot-swappable.
-
Rapid Trigger 0.01mm, zero dead zone — Keys reset the instant travel reverses instead of at a fixed reset point.
-
0.01-3.5mm adjustable actuation — Per-key actuation tuning at 0.01mm resolution, the widest range in the EV63 line (the Magnetic X Pro twin adjusts to 3.1mm).
-
8000Hz polling, 0.125ms — 16000Hz scanning and a 480MHz MCU on a wired USB Type-C connection.
-
3rd-gen Hall sensor + M.A.T. 2.0 — Rail-to-rail sensing with a 400% wider voltage range and a custom dual-circuit system.
-
Web-based EV Software V3 — SOCD, DKS, Mod Tap, Rappy Snappy, FPS pro presets, per-key remap and RGB, all in the browser.
Specifications
| Layout |
60% ANSI (64 Keys) |
| Switches |
IQUNIX Magnetic X Ultra (Hall Effect, linear, hot-swap) |
| Switch Force + Travel |
36gf initial / 48gf bottom-out / 3.5mm total travel |
| Rapid Trigger |
0.01mm sensitivity, zero dead zone |
| Adjustable Actuation |
0.01-3.5mm per key, 0.01mm accuracy |
| Polling + Scanning Rate |
8000Hz polling / 16000Hz scan rate (0.125ms latency) |
| Connection |
Wired only (USB Type-C) |
| Case + Mounting |
CNC aluminium case + forged carbon fibre, eSport tray mount, aluminium plate |
| Keycaps |
Frosted translucent PC |
| Lighting |
Per-key RGB, south-facing LED |
| Software |
EV Software V3 (web-based), Windows + macOS |
| Weight + Size |
1206g / 300.9 x 126 x 18.6mm (front height), 6 degree angle |
| Warranty |
1 Year |
Who it's for
A competitive FPS player who wants the top Magnetic X Ultra switch tuning, per-key actuation control and a silver, translucent finish.
