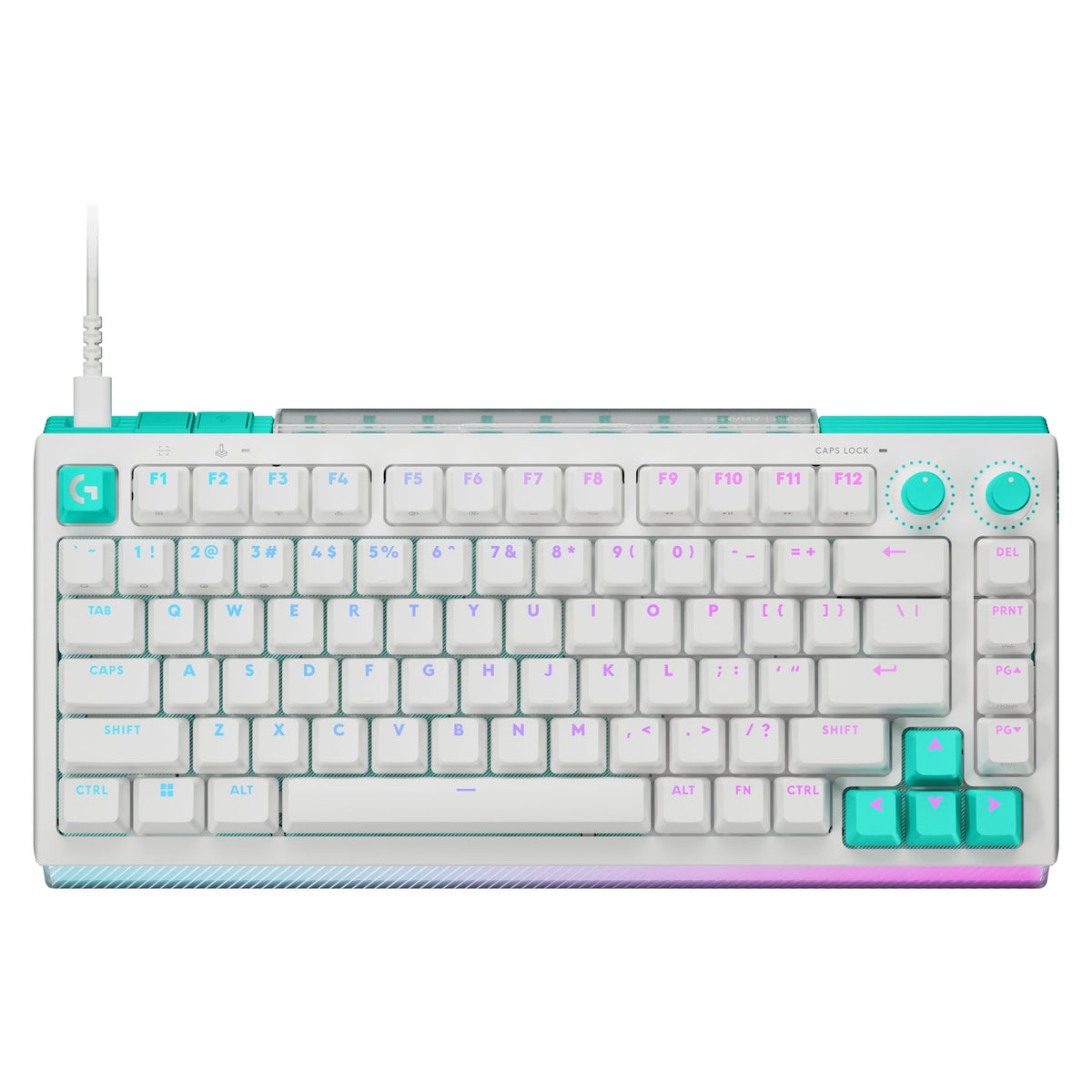

Logitech G G512 X 75 - a 75% keyboard with Dual Swap switch beds, TMR analog sensors and true 8K polling.

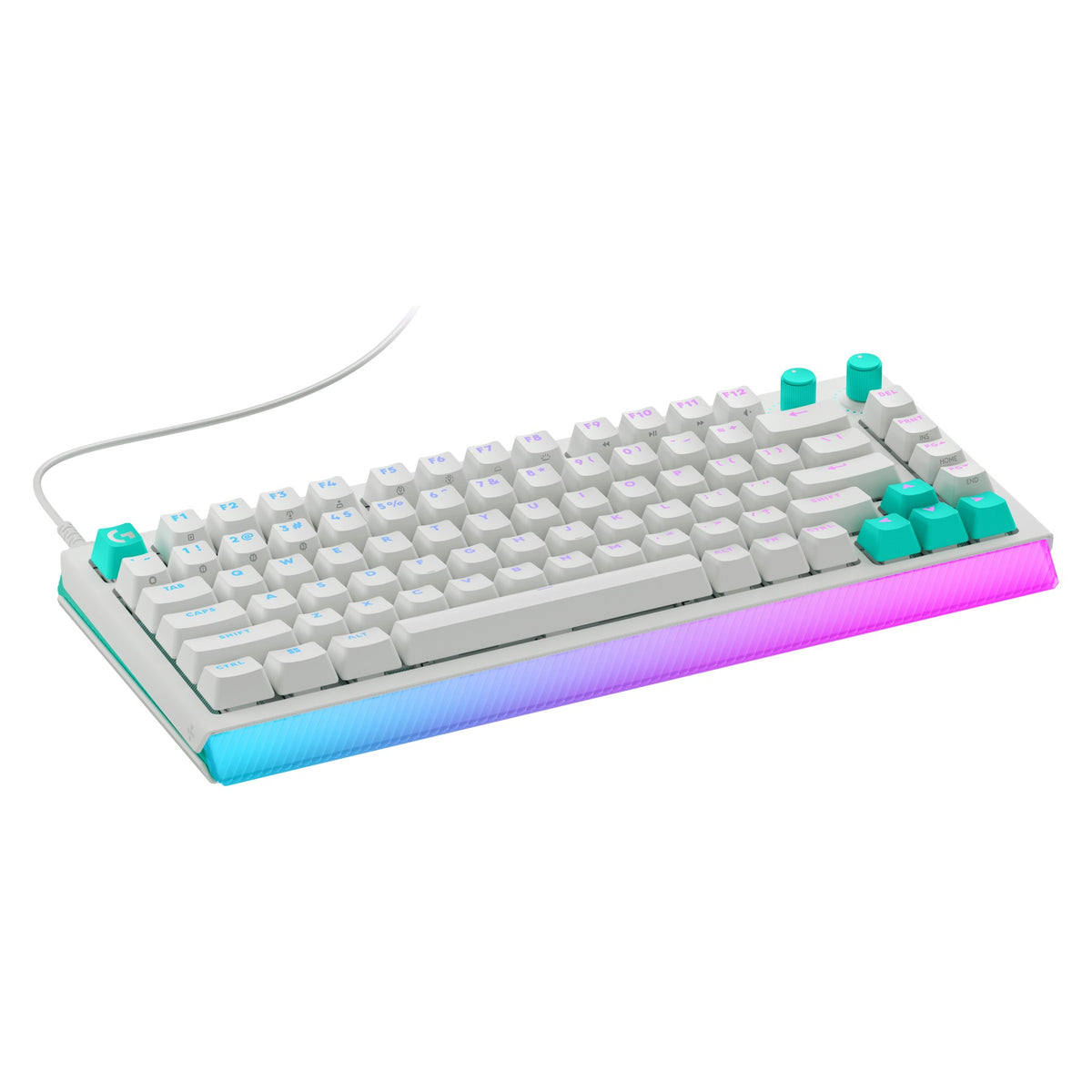

The G512 X 75 runs two switch technologies in one board. The 39 Dual Swap beds use TMR (Tunnel Magnetoresistance) analog sensors and also accept any standard 3-pin or 5-pin mechanical switch, while the remaining mechanical positions make up the 81 hot-swappable beds - so you can run analog in the keys that matter and mechanical everywhere else. Actuation is dialled per analog key in Logitech G HUB from 0.1 mm to 4.0 mm, Multipoint Action fires two commands from one press at different depths, and the 5 included SAPP rings add a tactile bump at the second trigger point. The board reports at 8000 Hz, a 0.125 ms response, and carries per-key 16.8 m colour LIGHTSYNC RGB plus a front-facing lightbar. Connection is wired over a detachable 1.8 m USB-C to USB-A cable; the keyboard measures 330.2 x 155.2 x 46.6 mm and weighs 850 g.
Key Features
-
Dual Swap switch beds — 39 TMR analog beds that take the analog switch or any standard 3-pin or 5-pin mechanical switch.
-
81 hot-swappable mechanical positions — 81 mechanical beds for tactile or linear switches, swapped without soldering.
-
True 8K polling — 8000 Hz report rate for a 0.125 ms response, with 1000 Hz selectable.
-
Adjustable actuation — Set each analog key from 0.1 mm to 4.0 mm in Logitech G HUB.
-
Multipoint Action and SAPP rings — Two commands from one keypress at different depths, with 5 SAPP rings marking the second point.
-

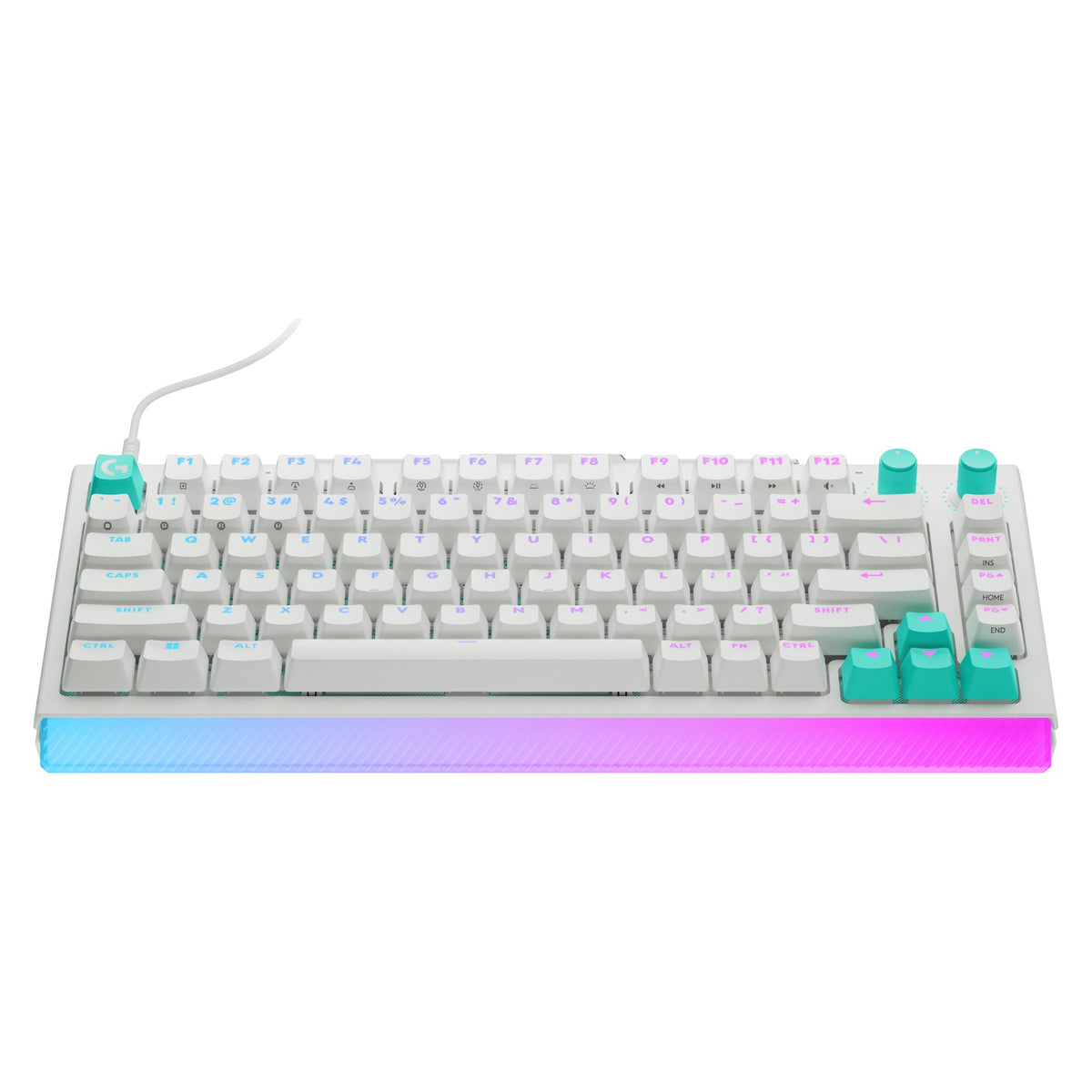

LIGHTSYNC RGB — Per-key 16.8 m colour backlighting plus a front lightbar, tuned in G HUB.
-
KEYCONTROL — Programmable keys and knobs for layers, profiles and per-game assignments.
-
Wired USB-C and 75% footprint — Detachable 1.8 m USB-C to USB-A cable, GAME MODE and Analog Scan buttons, 850 g board.
Specifications
| Model |
Logitech G G512 X 75 (TMR Analog/Mechanical) |
| Layout |
75% (English US QWERTY) |
| Switch Beds |
39x Dual Swap beds with TMR analog sensors plus 81x swappable mechanical beds (standard 3-pin or 5-pin switches) |
| Switches |
9x linear magnetic analog switches included; 81x tactile mechanical switches pre-installed |
| Actuation |
0.1 mm to 4.0 mm per analog key, with 5x SAPP rings for Multipoint Action |
| Report Rate |
8000 Hz (0.125 ms), 1000 Hz selectable |
| Keycaps |
Double-shot PBT |
| Lighting |
16.8 m colour LIGHTSYNC RGB per-key backlighting and front lightbar |
| Controls |
KEYCONTROL programmable keys and knobs, GAME MODE and Analog Scan buttons |
| Connectivity |
Wired - detachable 1.8 m USB-C to USB-A cable |
| Dimensions |
330.2 x 155.2 x 46.6 mm (L x W x H) |
| Weight |
850 g |
| Colour |
White |
| Sustainability |
FSC-certified packaging; 34% post-consumer recycled plastic (excluding the PWA, cable and packaging) |
| Compatibility |
Windows 10 or later, macOS 12 or later (internet access needed for advanced features via Logitech G HUB) |
| Warranty |
2-year limited hardware warranty |
| In the Box |

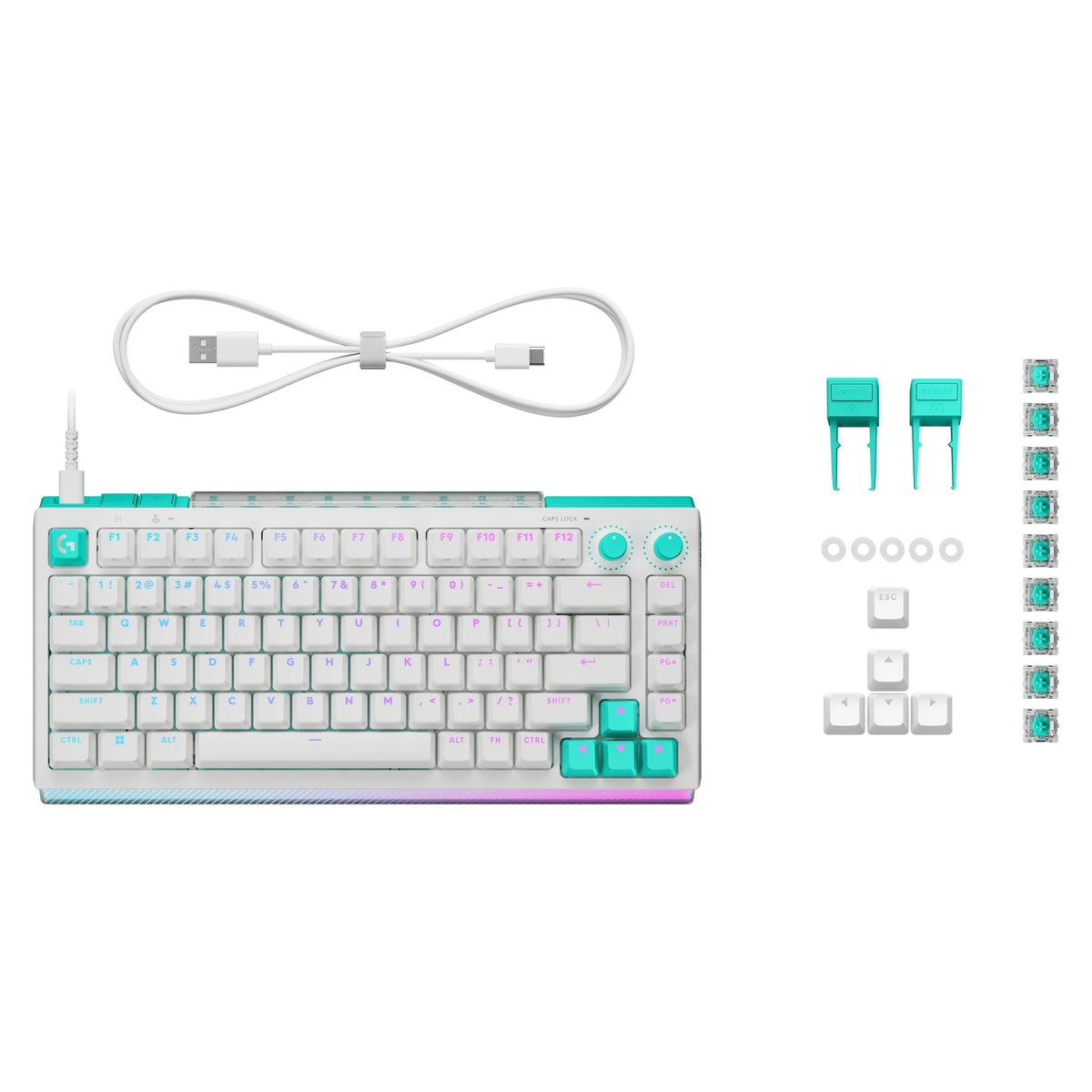

1 x G512 X 75 gaming keyboard, 9 x magnetic analog switches, 1 x 1.8 m detachable USB-C to USB-A cable, 1 x keycap puller/keyboard tilt, 1 x switch puller/keyboard tilt, 5 x alternative keycaps, 5 x SAPP rings, documentation. |
What’s in the box
1 x G512 X 75 gaming keyboard, 9 x magnetic analog switches, 1 x 1.8 m detachable USB-C to USB-A cable, 1 x keycap puller/keyboard tilt, 1 x switch puller/keyboard tilt, 5 x alternative keycaps, 5 x SAPP rings, documentation.
Who it’s for
Competitive players who want analog movement and configurable trigger depth, but still want a familiar mechanical switch under the rest of their fingers - on a 75% desk footprint.
