MSI B850M GAMING PLUS WIFI6E Motherboard

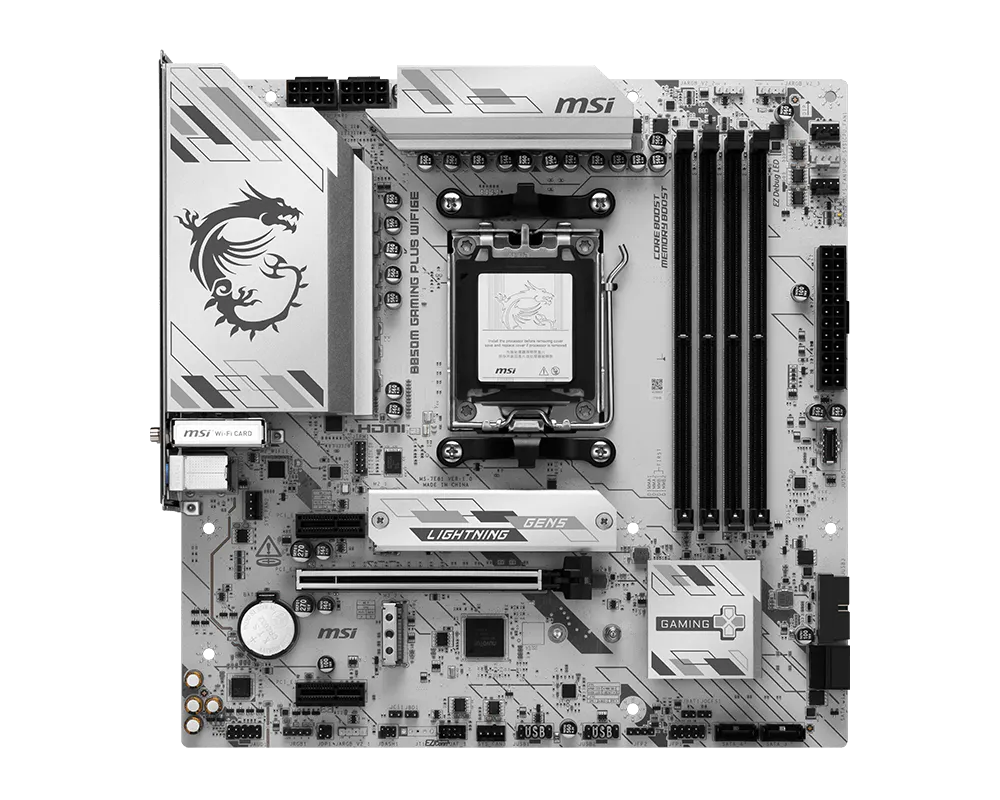

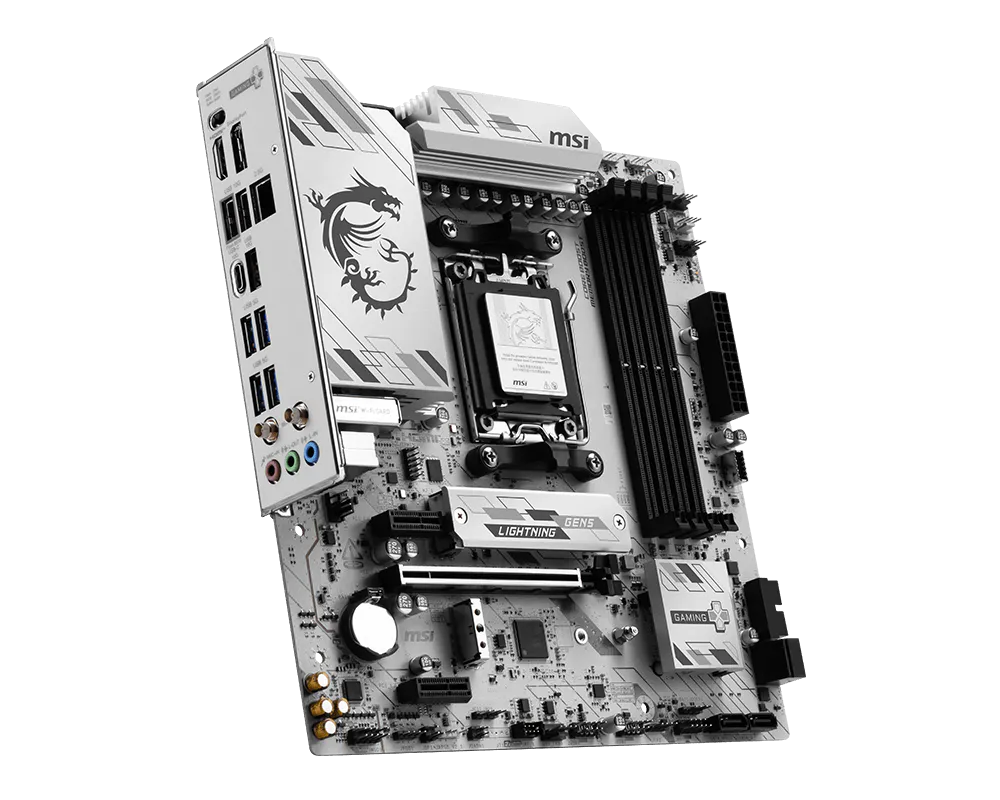

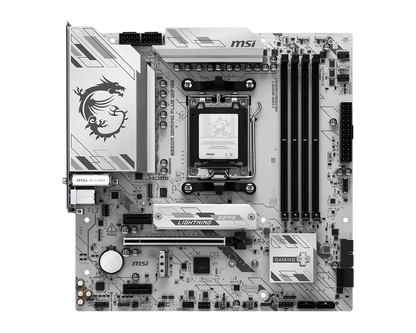

MSI B850M GAMING PLUS WIFI6E - four memory slots on a micro-ATX B850 board.

The MSI B850M GAMING PLUS WIFI6E is an AMD B850 micro-ATX board for Socket AM5 with Ryzen 9000, 8000 and 7000 support. It fits four DDR5 DIMM slots for up to 256GB at 8200 MT/s with EXPO, a PCIe 4.0 x16 graphics slot, two M.2 slots (one PCIe 5.0 x4) and four SATA 6G ports, with Wi-Fi 6E, Bluetooth 5.3 and Realtek 2.5G LAN (8125D) on a 243.84 x 243.84mm PCB.

Key Features

• 4x DDR5 up to 256GB — Four DIMM slots rated to 8200 MT/s, unusual on a micro-ATX board.
• PCIe 5.0 x4 M.2 — One Gen5 M.2 plus a PCIe 4.0 x4 M.2, and four SATA 6G ports.
• Wi-Fi 6E + BT 5.3 + 2.5G LAN — Wi-Fi 6E with six-gigahertz band support, plus Realtek 8125D 2.5G LAN.
• PCIe 4.0 x16 graphics slot — Plus two PCIe 3.0 x1 slots for expansion cards.
• HDMI 2.1 + DisplayPort 1.4 — 4K@60Hz from either output on a CPU with integrated graphics.
• EZ Debug + EZ Memory Detection — Diagnostic LEDs, and a Flash BIOS button on the rear panel.

Specifications

Who it's for

For a compact build that needs four memory slots and plenty of storage without going full ATX.
