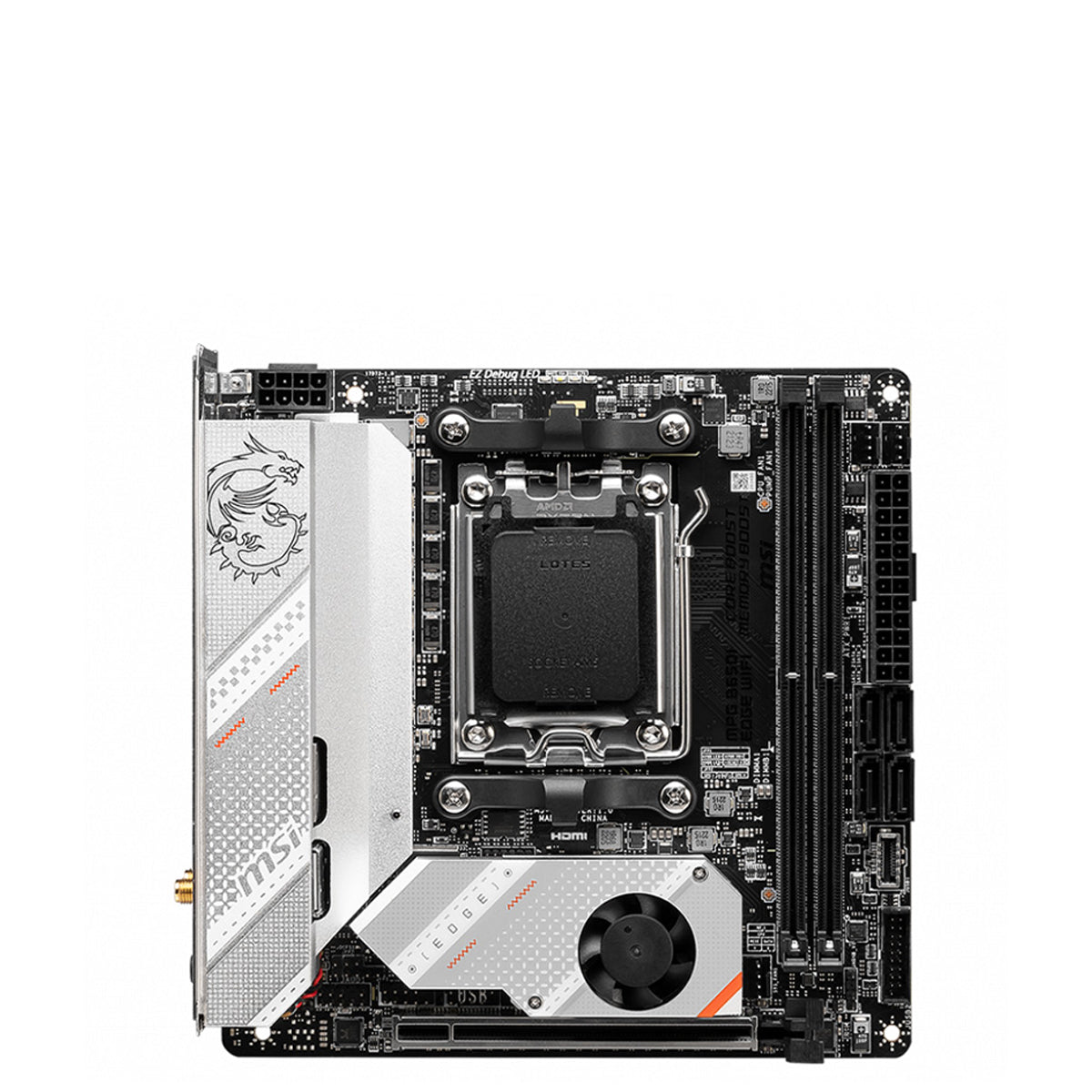

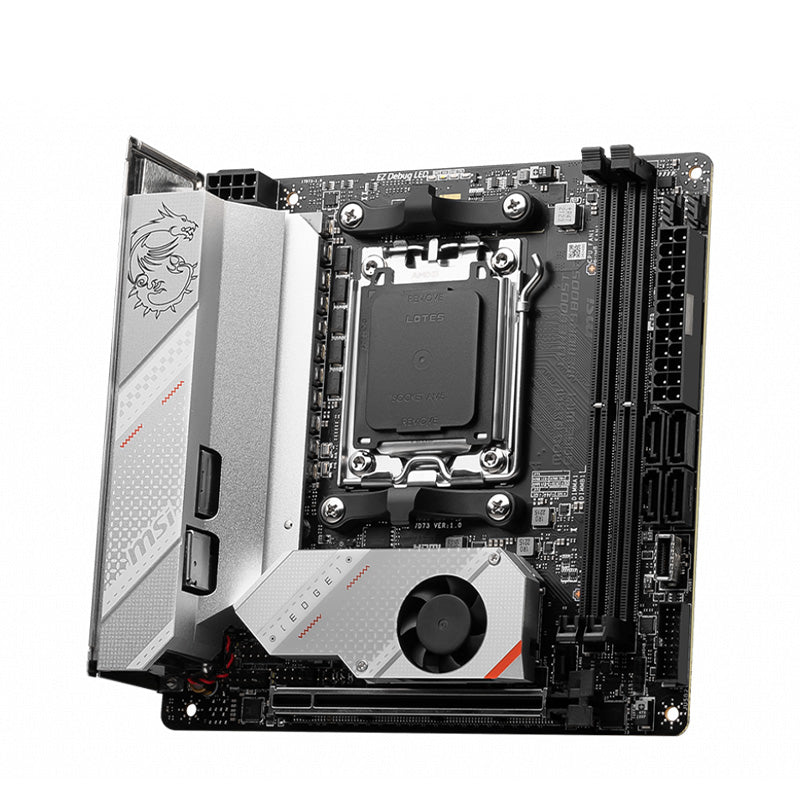

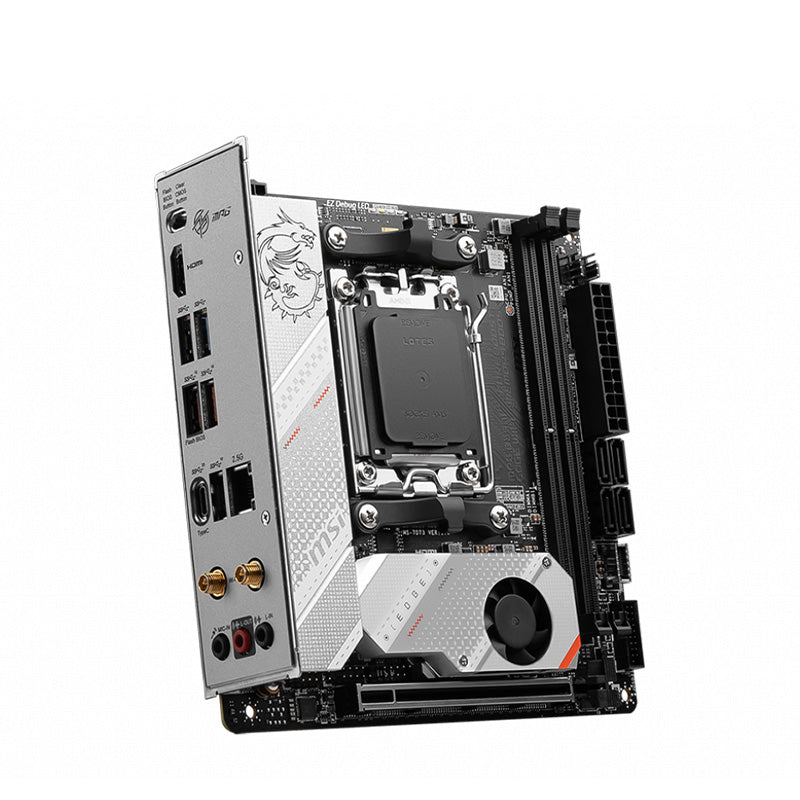

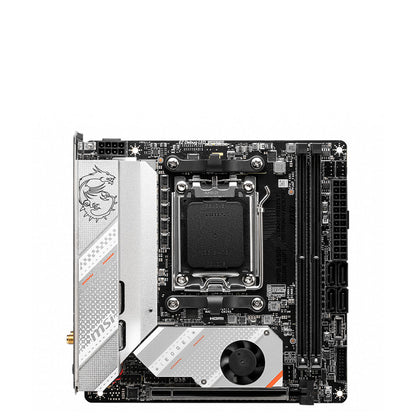

MSI MPG B650I EDGE WIFI - a full AM5 mini-ITX board: 8+2+1 phase power, two Gen4 M.2 slots and Wi-Fi 6E in 170mm.

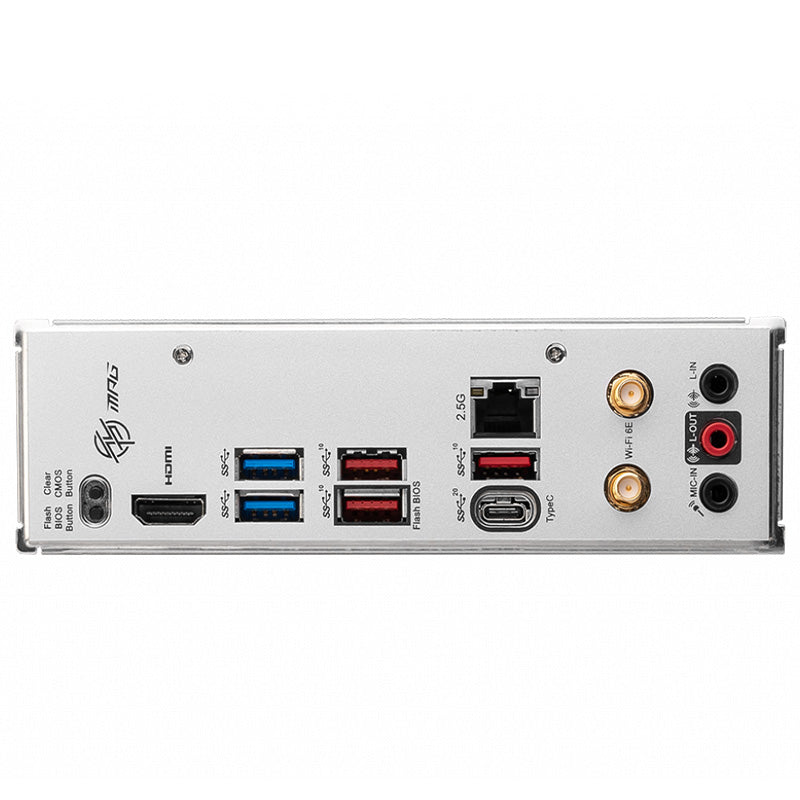

The MPG B650I EDGE WIFI is MSI's B650 chipset board for a small-footprint AM5 build, in a silver and black finish. It carries an 8+2+1 phase direct power design with 80A Smart Power Stages, two DDR5 DIMM slots rated to 128GB and up to 7200+ MHz (OC) with AMD EXPO, one PCIe 4.0 x16 slot and two PCIe 4.0 x4 M.2 slots (2280/2260) alongside four SATA 6Gb/s ports with RAID support. Networking is a Realtek RTL8125BG 2.5G LAN plus an AMD Wi-Fi 6E module with Bluetooth 5.2, and the rear I/O includes a USB 3.2 Gen2x2 Type-C port at 20Gbps, three USB 3.2 Gen2 Type-A and two USB 3.2 Gen1 Type-A ports. Audio is 8-channel (7.1) HD Audio with Audio Boost 5, and the board measures 170 x 170mm.
Key Features
-
8+2+1 direct power with 80A stages - Built for a high-end AM5 processor in a mini-ITX footprint, with two CPU power connectors.
-
2x DDR5, 128GB and 7200+ MHz (OC) - Two DIMM slots with MSI Memory Boost, SMT welding and AMD EXPO support.
-
Two PCIe 4.0 x4 M.2 slots - Both M.2 slots take 2280/2260 drives, with RAID 0 and RAID 1 for NVMe storage.
-
Wi-Fi 6E and 2.5G LAN - An AMD Wi-Fi 6E module pre-installed in the M.2 Key-E slot (2.4/5/6GHz, 160MHz) with Bluetooth 5.2, plus a Realtek 2.5Gbps wired port.
-
USB 3.2 Gen2x2 20Gbps Type-C - A 20Gbps rear Type-C port, three 10Gbps Type-A ports, a front Type-C header and four more USB ports.
-
Audio Boost 5 - Isolated 8-channel (7.1) HD audio with a dedicated audio processor.
-
170 x 170mm Mini-ITX - M.2 Shield Frozr, an extended heatsink with a MOSFET baseplate and a Pump Fan header for an AIO.
Specifications
| Chipset + Socket |
AMD B650, Socket AM5 |
| CPU Support |
AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Memory |
2x DDR5, 128GB max, DDR5 7200+ MHz (OC), AMD EXPO, dual channel |
| Expansion Slot |
1x PCIe 4.0 x16 (from CPU) |
| Storage |
2x M.2 PCIe 4.0 x4 (2280/2260) + 4x SATA 6Gb/s, RAID 0/1/10 |
| USB (Rear) |
1x USB 3.2 Gen2x2 Type-C, 3x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1 Type-A |
| USB (Front) |
1x USB 3.2 Gen2 Type-C, 2x USB 3.2 Gen1 Type-A, 2x USB 2.0 |
| Networking |
Realtek RTL8125BG 2.5G LAN, AMD Wi-Fi 6E, Bluetooth 5.2 |
| Audio |
8-Channel (7.1) HD Audio with Audio Boost 5 |
| Power Design |
8+2+1 phase direct power, 80A Smart Power Stage |
| Onboard Graphics |
1x HDMI 2.1 FRL (4K 120Hz, requires CPU graphics) |
| Form Factor |
Mini-ITX, 170 x 170mm |
| Warranty |
3 YR Warranty |
What's in the box
1 x MPG B650I EDGE WIFI motherboard, SATA cables, Wi-Fi antenna, M.2 screws and standoffs, I/O shield, quick start guide and warranty card.
Who it's for
An AM5 mini-ITX build that still wants two M.2 drives, a 2.5G wired port and Wi-Fi 6E - the B650 chipset keeps the price down while the 8+2+1 power design carries a Ryzen 7 or Ryzen 9.
