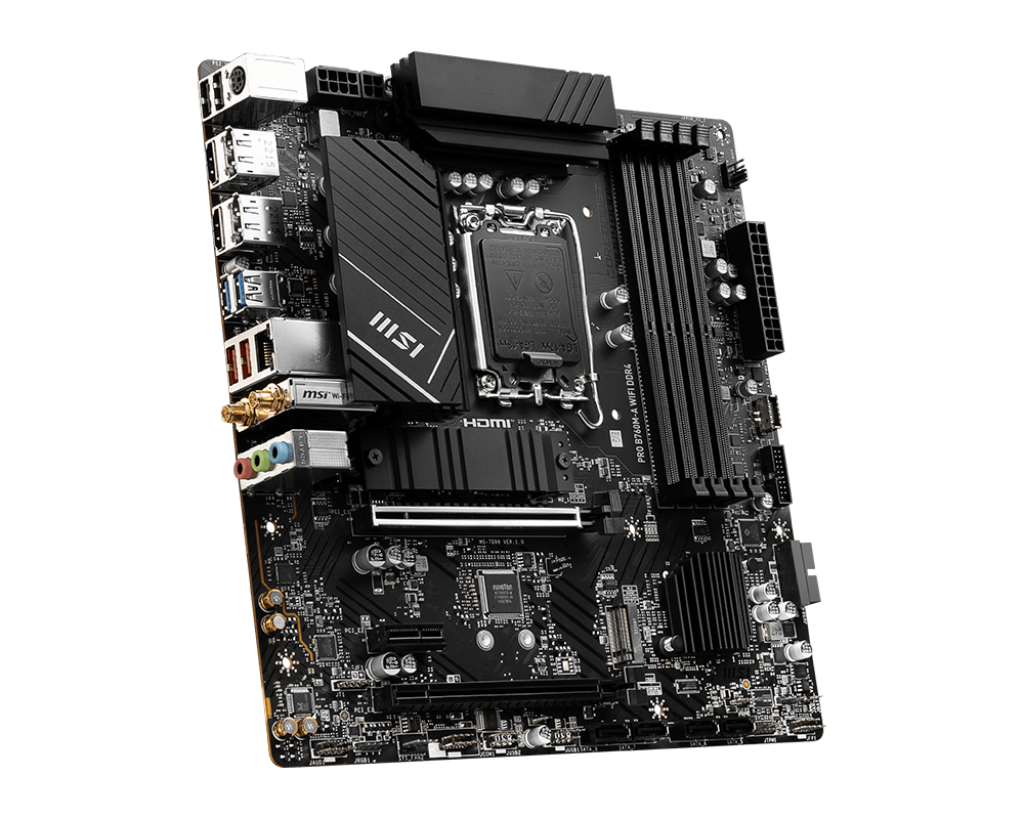

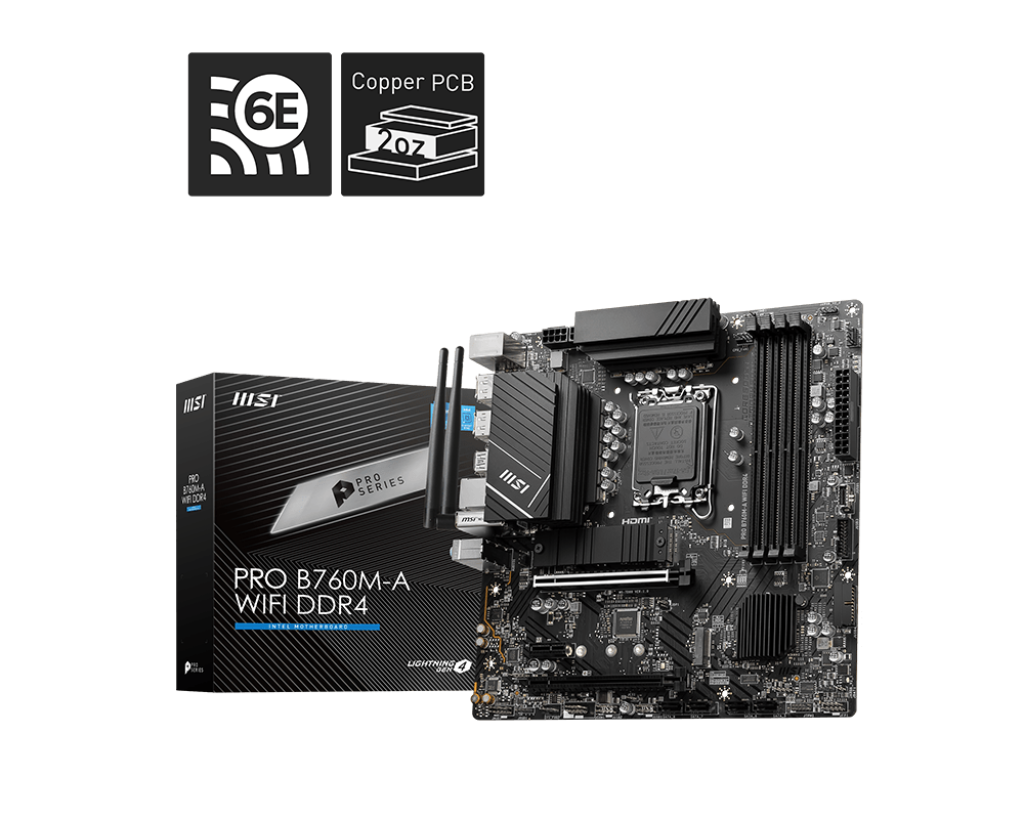

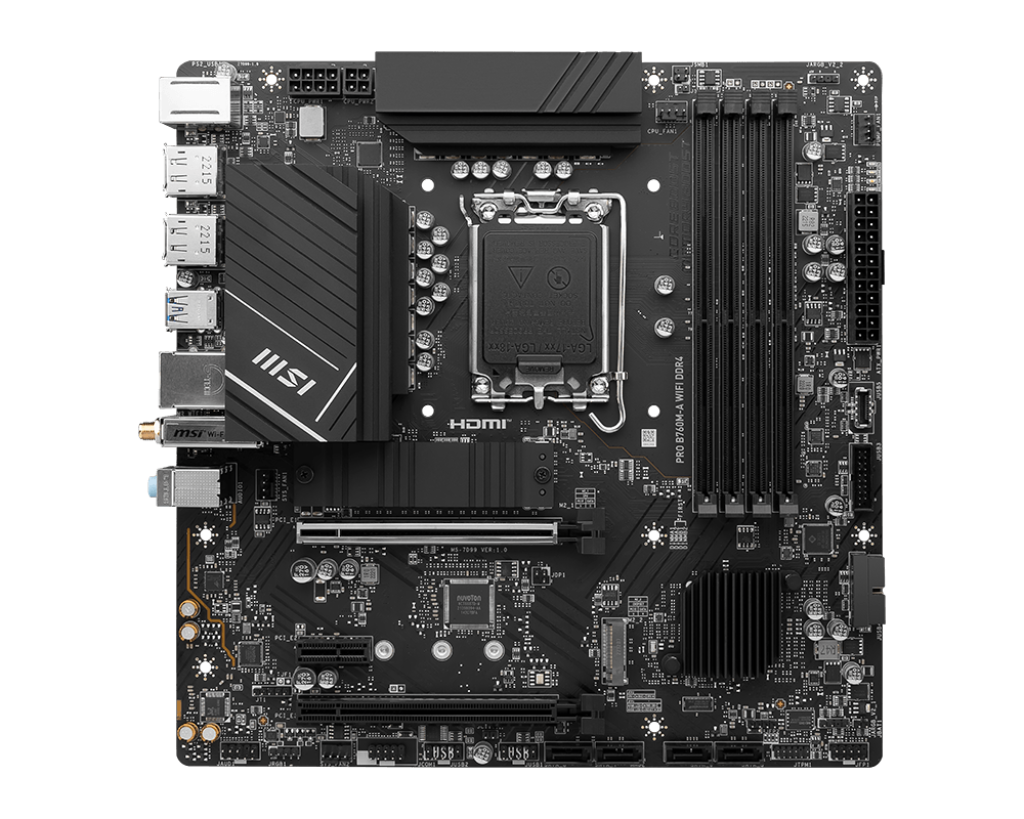

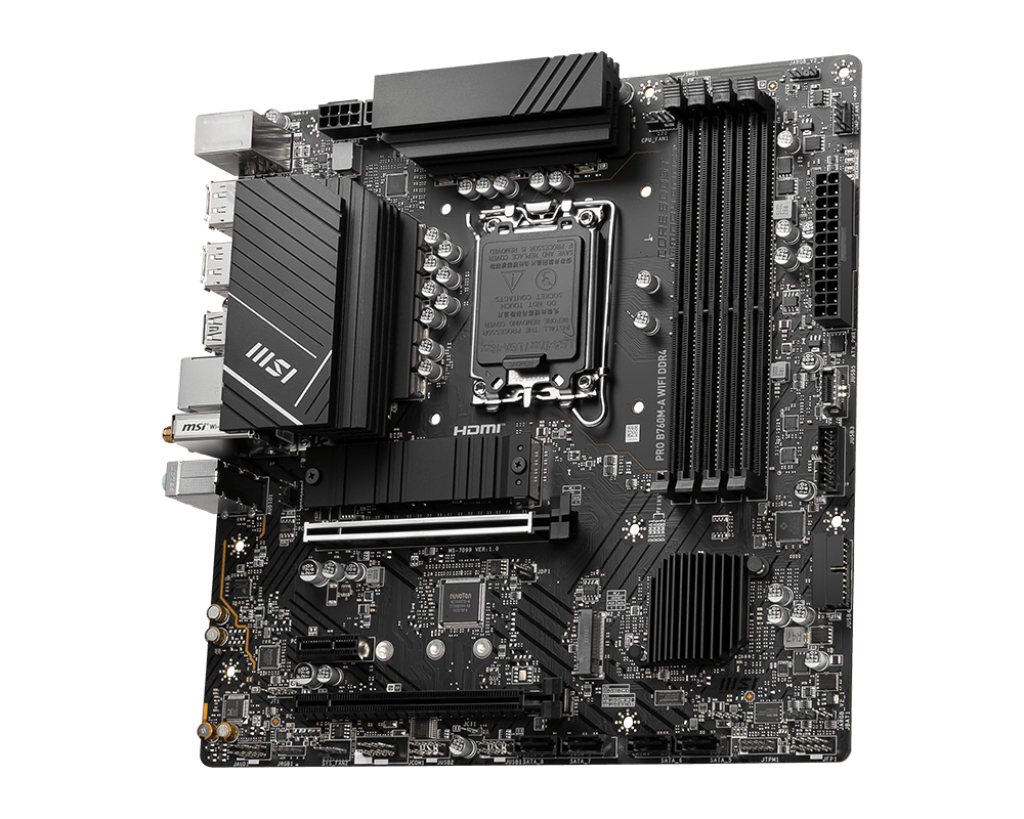

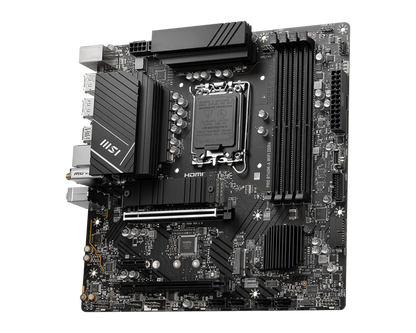

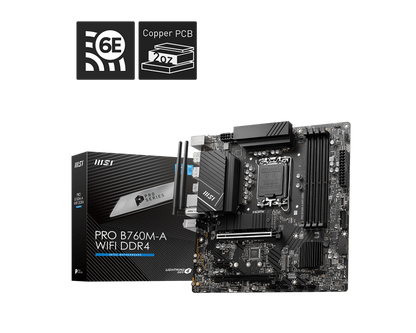

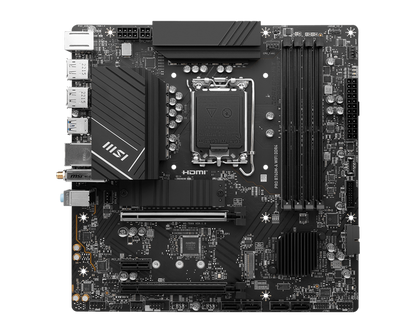

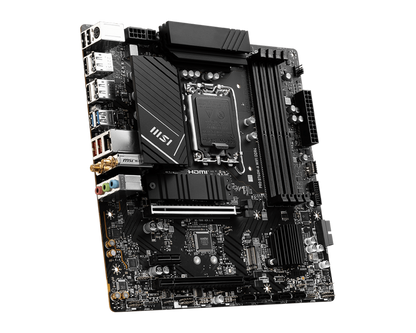

MSI PRO B760M-A WIFI DDR4 - INTEL B760 micro-ATX board for LGA1700.
The MSI PRO B760M-A WIFI DDR4 runs the INTEL B760 chipset on LGA1700, takes 4x DDR4, Maximum Memory Capacity 128GB / Memory Support 5333(OC)/ 5200(OC)/ 5066(OC) ... and expansion is 2x PCIe x16 slot / 1x PCIe x1 slot / PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) / PCI_E2 Gen PCIe 3.0 supports and storage runs to 2x M.2 / M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices / M.2_2 Source (From Chipset).
Key Features
-
Memory - 4x DDR4, Maximum Memory Capacity 128GB / Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)
-
Expansion - 2x PCIe x16 slot / 1x PCIe x1 slot / PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) / PCI_E2 Gen PCIe 3.0 supports
-
Storage - 2x M.2 / M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices / M.2_2 Source (From Chipset)
-
Networking - Realtek RTL8125BG 2.5G LAN / Intel Wi-Fi 6E / The Wireless module is pre-installed in the M.2 (Key-E) slot / Supports + Bluetooth 5.3
-

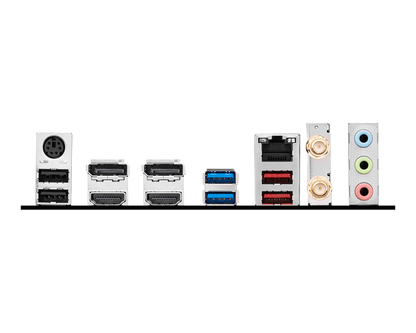

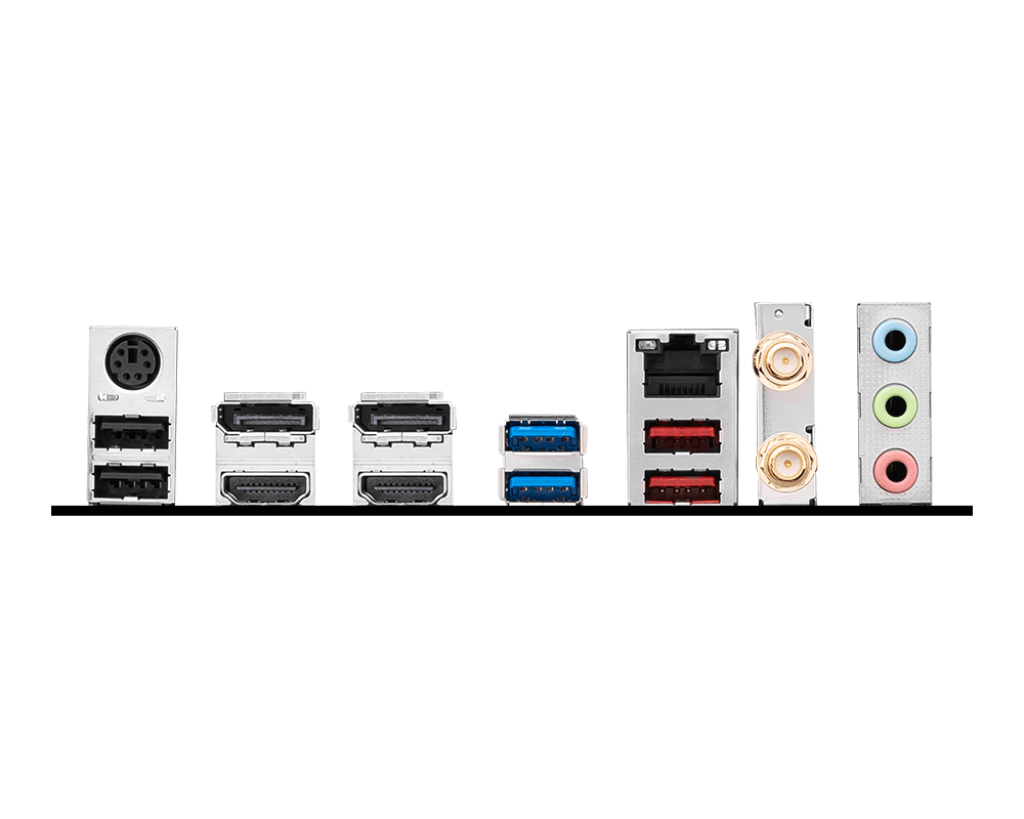

Audio + rear I/O - Realtek ALC897 Codec / 7.1-Channel High Definition Audio / Keyboard / Mouse / DisplayPort / USB 3.2 Gen 1 5Gbps (Type-A) / 2.5G LAN / Wi-Fi
-
micro-ATX form factor - MSI's micro-ATX layout for LGA1700 builds
Specifications
| Chipset + Socket |
INTEL B760 Chipset + LGA1700 |
| Memory |
4x DDR4, Maximum Memory Capacity 128GB / Memory Support 5333(OC)/ 5200(OC)/ 5066(OC) ... |
| Expansion Slots |
2x PCIe x16 slot / 1x PCIe x1 slot / PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) / PCI_E2 Gen PCIe 3.0 supports |
| Storage |
2x M.2 / M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices / M.2_2 Source (From Chipset) |
| Networking |
Realtek RTL8125BG 2.5G LAN / Intel Wi-Fi 6E / The Wireless module is pre-installed in the M.2 (Key-E) slot / Supports + Bluetooth 5.3 |
| Audio + Rear I/O |
Realtek ALC897 Codec / 7.1-Channel High Definition Audio / Keyboard / Mouse / DisplayPort / USB 3.2 Gen 1 5Gbps (Type-A) / 2.5G LAN / Wi-Fi |
| Form Factor |
micro-ATX |
Who it's for
A micro-ATX board for LGA1700 builds.
