| Standards |
Wi-Fi 6 |
| IEEE 802.11ax/ac/n/a 5 GHz |
| IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX1800 |
| 5 GHz: 1201 Mbps (802.11ax) |
| 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
2-3 Bedroom Houses |
| |
| 4× Fixed High-Performance Antennas |
| Multiple antennas form a signal-boosting array to cover more directions and large areas |
| |
| Beamforming |
| Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
High |
| |
| Dual-Band |
| Allocate devices to different bands for optimal performance |
| |
| Airtime Fairness |
| Improves network efficiency by limiting excessive occupation |
| |
| 4 Streams |
| Connect your devices to more bandwidth |
| Working Modes |
Router Mode |
| Access Point Mode |
| HARDWARE |
| Processor |
Dual-Core CPU |
| Ethernet Ports |
1× Gigabit WAN Port |
| 4× Gigabit LAN Ports |
| Buttons |
WPS/Wi-Fi Button |
| Power On/Off Button |
| Reset Button |
| Power |
12 V ⎓ 1 A |
| SECURITY |
| WiFi Encryption |
WPA |
| WPA2 |
| WPA3 |
| WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall |
| Access Control |
| IP & MAC Binding |
| Application Layer Gateway |
| Guest Network |
1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPN |
| PPTP |
| SOFTWARE |
| Protocols |
IPv4 |
| IPv6 |
| OneMesh™ |
OneMesh™ Supported |
| Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Learn More> |
| All OneMesh Products> |
| Parental Controls |
URL Filtering |
| Time Controls |
| WAN Types |
Dynamic IP |
| Static IP |
| PPPoE |
| PPTP |
| L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware Upgrade |
| OTA Firmware Upgrade |
| TP-Link ID |
| DDNS |
| NAT Forwarding |
Port Forwarding |
| Port Triggering |
| DMZ |
| UPnP |
| IPTV |
IGMP Proxy |
| IGMP Snooping |
| Bridge |
| Tag VLAN |
| DHCP |
Address Reservation |
| DHCP Client List |
| Server |
| DDNS |
TP-Link |
| NO-IP |
| DynDNS |
| Management |
Tether App |
| Webpage |
| Check Web Emulator> |
| OTHER |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| |
| Cable or DSL Modem (if needed) |
| |
| Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power |
CE: |
| <20dBm(2.4 GHz) |
| <23dBm(5.15 GHz~5.25 GHz) |
| FCC: |
| <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity |
EU Version |
| 5G |
| 11a 6Mbps: -96dbm |
| 11a 54Mbps:-75dbm |
| 11ac VHT20_MCS0: -95dbm |
| 11ac VHT20_MCS8: -71dbm |
| 11ac VHT40_MCS0: -92dbm |
| 11ac VHT40_MCS9: -66dbm |
| 11ac VHT80_MCS0: -89dbm |
| 11ac VHT80_MCS9:-62dbm |
| 11ax HE20_MCS0:-95dbm |
| 11ax HE20_MCS11: -64dbm |
| 11ax HE40_MCS0: -92dbm |
| 11ax HE40_MCS11: -60dbm |
| 11ax HE80_MCS0: -89dbm |
| 11ax HE80_MCS11:-59dbm |
| |
| 2.4G |
| 11g 6Mbps:-96dbm |
| 11g 54Mbps:-75dbm |
| 11n HT20_MCS0:-95dbm |
| 11n HT20_MCS7:-75dbm |
| 11n HT40_MCS0:-92dbm |
| 11n HT40_MCS7: -72dbm |
| 11ac VHT20_MCS0:-95dbm |
| 11ac VHT20_MCS8:-72dbm |
| 11ac VHT40_MCS0:-92dbm |
| 11ac VHT40_MCS9: -67dbm |
| 11ax HE20_MCS0:-95dbm |
| 11ax HE20_MCS11: -65dbm |
| 11ax HE40_MCS0: -92dbm |
| 11ax HE40_MCS11: -62dbm |
| |
| US Version |
| 5G |
| 11a 6Mbps: -96dbm |
| 11a 54Mbps:-75dbm |
| 11ac VHT20_MCS0: -95dbm |
| 11ac VHT20_MCS8: -71dbm |
| 11ac VHT40_MCS0: -92dbm |
| 11ac VHT40_MCS9: -66dbm |
| 11ac VHT80_MCS0: -89dbm |
| 11ac VHT40_MCS9:-62dbm |
| 11ax HE20_MCS0:-95dbm |
| 11ax HE20_MCS11: -64dbm |
| 11ax HE40_MCS0: -92dbm |
| 11ax HE40_MCS11: -60dbm |
| 11ax HE80_MCS0: -89dbm |
| 11ax HE80_MCS11:-59dbm |
| |
| 2.4G |
| 11g 6Mbps:-96dbm |
| 11a 54Mbps:-75dbm |
| 11ac VHT20_MCS0:-95dbm |
| 11ac VHT20_MCS8:-72dbm |
| 11ac VHT40_MCS0:-92dbm |
| 11ac VHT40_MCS9: -67dbm |
| 11ax HE20_MCS0:-95dbm |
| 11ax HE20_MCS11: -65dbm |
| 11ax HE40_MCS0: -92dbm |
| 11ax HE40_MCS11: -62dbm |
| PHYSICAL |
| Dimensions (W×D×H) |
10.2 × 5.3 ×1.5 in |
| (260.2 × 135.0 × 38.6 mm) |
| Package Contents |

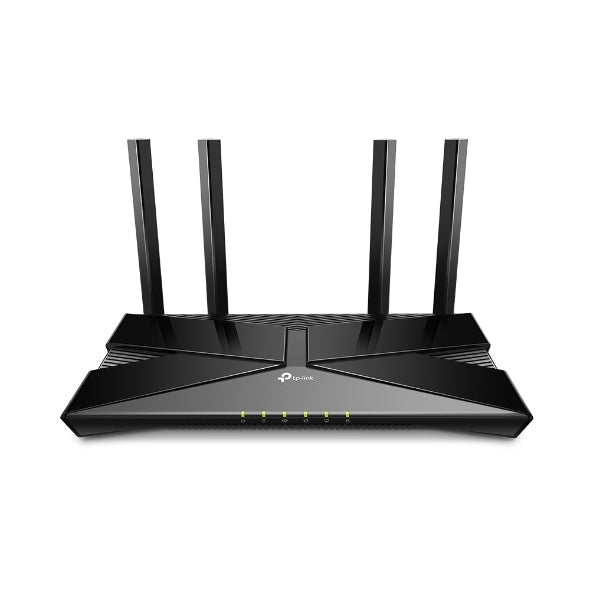

Wi-Fi Router Archer AX23 |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
|
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of 802.11ax (Wi-Fi 6), and features including OFDMA and 1024-QAM requires clients to also support corresponding features.
§The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting the improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario.
△Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.
*Use of WPA3 requires clients to also support WPA3.
**This router may not support all the mandatory features as ratified in the IEEE 802.11AX specification.
***Further software upgrades for feature availability may be required.
|
|
|
|
|
|
|
|
