| WIRELESS |
| Standards |
Wi-Fi 5 |
| IEEE 802.11ac/n/a 5 GHz |
| IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC1200 |
| 5 GHz: 867 Mbps (802.11ac) |
| 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
3 Bedroom Houses |
| |
| 4× Fixed Antennas |
| Multiple antennas form a signal-boosting array to cover more directions and large areas |
| |
| Beamforming |
| Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
Medium |
| |
| Dual-Band |
| Allocate devices to different bands for optimal performance |
| |
| MU-MIMO |
| Simultaneously communicates with multiple MU-MIMO clients |
| Working Modes |
Router Mode |
| Access Point Mode |
| Range Extender Mode |
| HARDWARE |
| Processor |
Single-Core CPU |
| Ethernet Ports |
1× 10/100 Mbps WAN Port |
| 4× 10/100 Mbps LAN Ports |
| Buttons |
WPS/Reset Button |
| Power |
9 V ⎓ 0.85 A |
| SECURITY |
| WiFi Encryption |
WEP |
| WPA |
| WPA2 |
| WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall |
| Access Control |
| IP & MAC Binding |
| Application Layer Gateway |
| Guest Network |
1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network |
| SOFTWARE |
| Protocols |
IPv4 |
| IPv6 |
| Parental Controls |
URL Filtering |
| Time Controls |
| WAN Types |
Dynamic IP |
| Static IP |
| PPPoE |
| PPTP |
| L2TP |
| Quality of Service |
QoS by Device |
| NAT Forwarding |
Port Forwarding |
| Port Triggering |
| DMZ |
| UPnP |
| IPTV |
IGMP Proxy |
| IGMP Snooping |
| Bridge |
| Tag VLAN |
| DHCP |
Address Reservation |
| DHCP Client List |
| Server |
| DDNS |
NO-IP |
| DynDNS |
| Management |
Tether App |
| Webpage |
| Check Web Emulator> |
| PHYSICAL |
| Dimensions (W×D×H) |
4.5 × 4.2 × 1.0 in |
| (115 × 106.7 × 24.3 mm) |
| Package Contents |

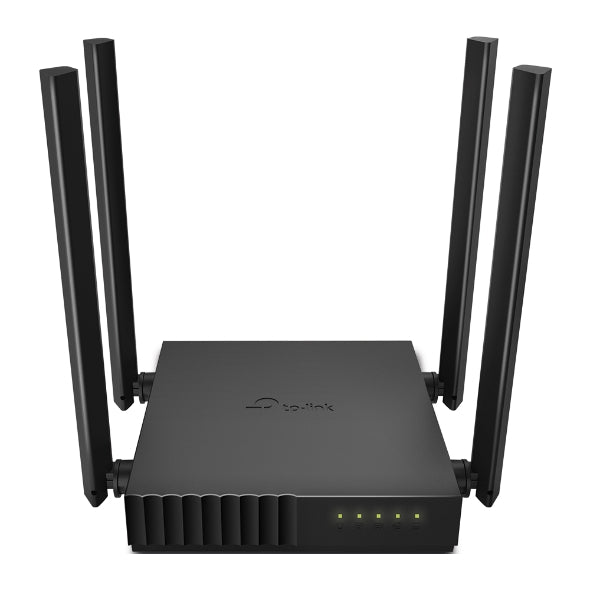

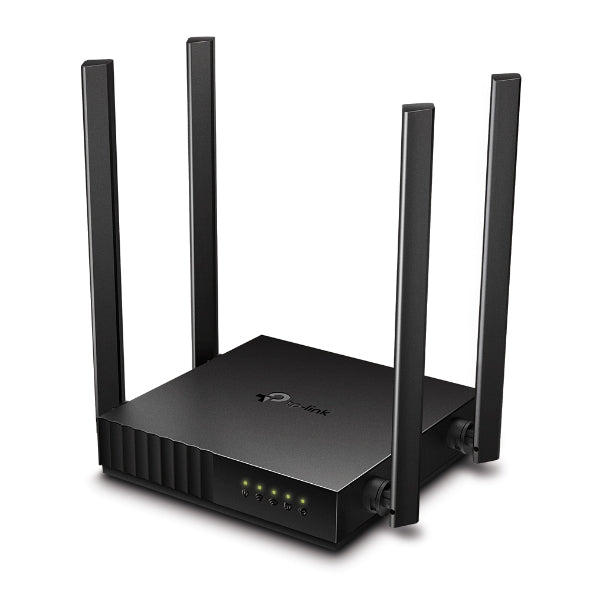

Wi-Fi Router Archer C54 |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
| OTHER |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| |
| Cable or DSL Modem (if needed) |
| |
| Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~60℃ (-40℉ ~140℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power |
CE EIRP: |
| <20dBm(2.4GHz) |
| <23dBm(5GHz) |
| FCC: |
| <30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity |
5GHz: |
| 11a 6Mbps:-93dBm； |
| 11a 54Mbps:-78dBm； |
| 11ac HT20 mcs8:69dBm; |
| 11ac HT40 mcs9:-66dBm; |
| 11ac HT80 mcs9:-62dBm; |
| 2.4GHz: |
| 11g 54Mbps:-78dBm; |
| 11n HT20 mcs7:-74dBm; |
| 11n HT40 mcs7:-71dbm |
