| WIRELESS |
|
| Standards |
Wi-Fi 6 |
|
IEEE 802.11ax/ac/n/a 5 GHz |
|
IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX3000 |
|
5 GHz: 2402 Mbps (802.11ax, HE160) |
|
2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |

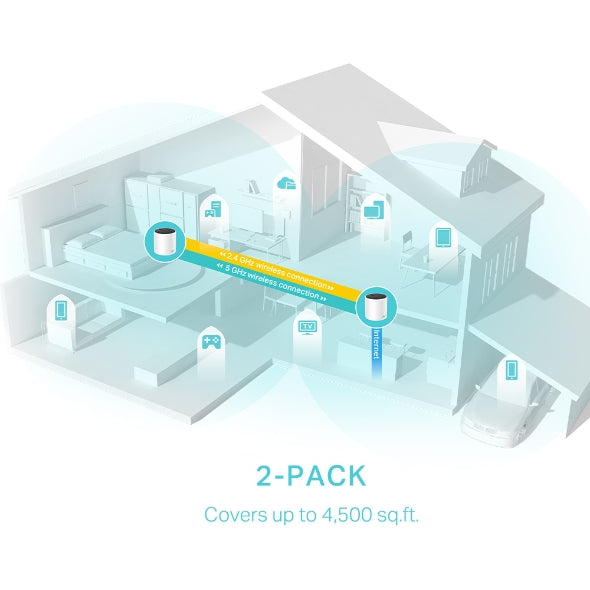

3-4 Bedroom Houses (2-pack) |
|
|
|
TP-Link Mesh Technology |
|
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage |
|
|
|

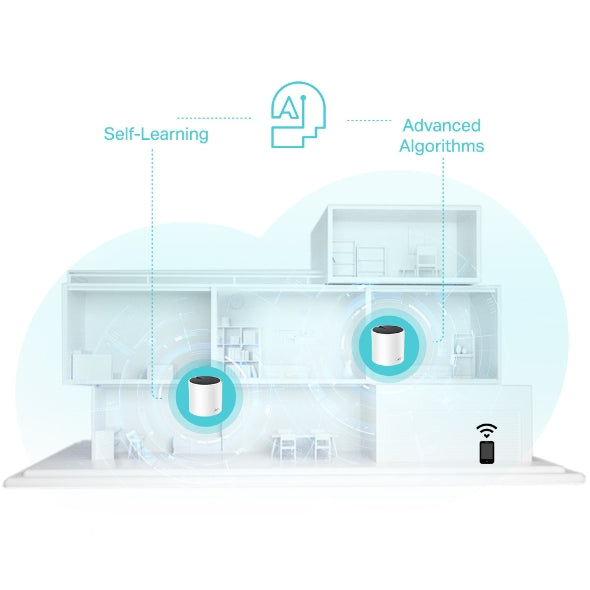

AI-Driven Mesh |
|
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home |
|
|
|
2× Antennas (Internal) |
|
Multiple antennas form a signal-boosting array to cover more directions and large areas |
|
|
|
Beamforming |
|
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
High |
|
|
|
Dual-Band |
|
Distribute devices to different bands for optimal performance |
|
|
|
2×2 MU-MIMO |
|
Simultaneously communicates with multiple MU-MIMO clients |
|
|
|
OFDMA |
|
Simultaneously communicates with multiple WiFi 6 clients |
|
|
|
4 Streams |
|
More than enough bandwidth for connected devices |
| Working Modes |
Router Mode |
|
Access Point Mode |
| SECURITY |
|
| Network Security |
SPI Firewall |
|
Access Control |
|
|
|
HomeShield Security |
|
|
|
Real-Time IoT Protection |
|
Malicious Site Blocker |
|
Intrusion Prevention System |
|
DDoS Attack Prevention |
|
Home Network Scanner |
| Guest Network |
1× 5 GHz Guest Network |
|
1× 2.4 GHz Guest Network |
|
|
|
Effective Time |
|
Bandwidth Control |
| VPN Server |
• Open VPN Server |
|
• PPTP VPN Server |
|
• L2TP VPN Server |
| VPN Client |
• Open VPN Client |
|
• PPTP VPN Client |
|
• L2TP VPN Client |
| WiFi Encryption |
WPA-Personal |
|
WPA2-Personal |
|
WPA3-Personal |
| HARDWARE |
| Button |
Reset Button |
| Ethernet Ports |
3× Gigabit Ports |
|
|
|
*Per Deco Unit |
|
Supports WAN/LAN auto-sensing |
| SOFTWARE |
| Advanced Features |
• Reboot Schedule (*Note: Version 1.0 and 1.20 support this feature. Further software upgrades for feature availability may be required.) |
|
• Tapo/Kasa onboarding |
|
• IoT network & Device Isolation |
|
• Static Router Function |
|
• Node/Band Connection Preference |
| Protocols |
IPv4 |
|
IPv6 |
| Service Kits |
HomeShield |
| Parental Controls |
HomeShield Parental Controls |
|
|
|
Youtube Restriction |
|
SafeSearch |
|
Custom Profiles |
|
Professional Content Filter Library |
|
Family Time |
|
Bedtime |
|
Off Time |
|
Time Rewards |
|
Family Online Time Ranking |
|
Pause the Internet |
|
Weekly and Monthly Reports |
| WAN Types |
Dynamic IP |
|
Static IP |
|
PPPoE |
|
PPTP |
|
L2TP |
| Quality of Service |
HomeShield QoS |
|
|
|
QoS by Device |
| Cloud Service |
OTA Firmware Upgrade |
|
TP-Link ID |
|
DDNS |
| NAT Forwarding |
Port Forwarding |
|
UPnP |
| IPTV |
IGMP Proxy |
|
IGMP Snooping |
|
Bridge |
|
Tag VLAN |
| DHCP |
Address Reservation |
|
DHCP Client List |
|
Server |
| DDNS |
TP-Link |
| Management |
Deco App |
| TEST DATA |
| WiFi Transmission Power |
CE: |
|
<20 dBm (2.4 GHz) |
|
<23 dBm (5 GHz) |
|
FCC: |
|
<30 dBm (2.4 GHz) |
|
<30 dBm (5 GHz) |
| PHYSICAL |
|
| Dimensions (W×D×H) |
4.33 × 4.33 × 4.49 in |
|
(110 × 110 × 114 mm) |

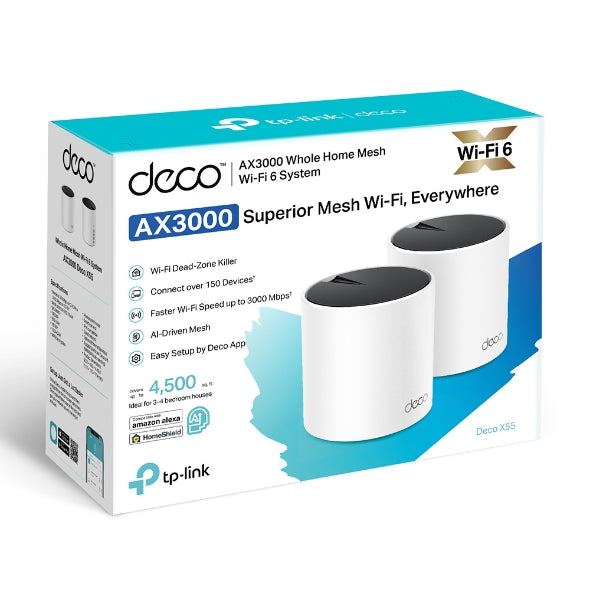

| Package Contents |

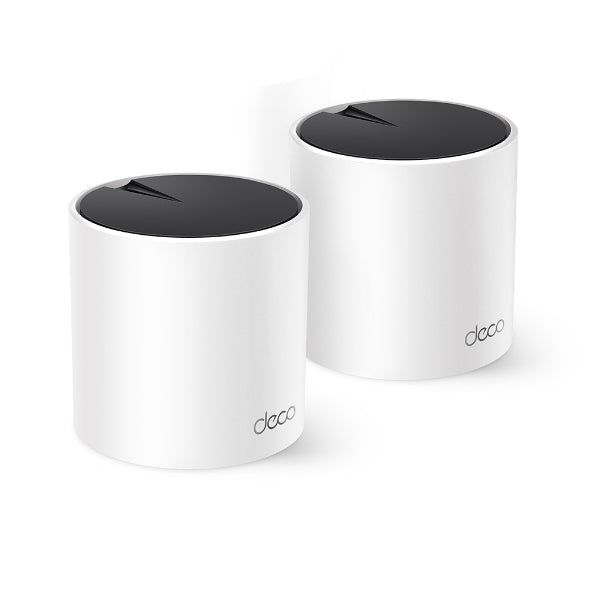

Deco X55 (2-pack) |
|
2 Deco X55 units |
|
1 RJ45 Ethernet cable |
|
2 Power adapters |
|
1 Quick Installation Guide |
| OTHERS |
|
| System Requirements |
Android 5.0 or later |
|
iOS 9.0 or later |
|
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
| Certifications |
CE, FCC, RoHS, RCM |
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) |
|
Storage Temperature: -40°C~70°C (-40°F~158°F) |
|
Operating Humidity: 10%~90% non-condensing |
|
Storage Humidity: 5%~90% non-condensing |
