| CAMERA |
| Image Sensor |
1/3” Progressive Scan CMOS Starlight Sensor |
| Lens |
Focal Length: 4 mm |
| Aperture: F2.0 |
| Field of View: 88° (Diagonal), 75°(Horizontal), 41°(Vertical) |
| Motion Range |
Pan Mechanical Range: 340° (360° Pan Coverage) |
| Tilt Mechanical Range: 69° (110° Tilt Coverage) |
| Night Vision |
850 nm IR LED (30 ft / 10 m) |
| Lighting |
/ |
| Interface & Button |
1× RESET Button |
| 1× MicroSD Card Slot (Up to 512GB) |
| Hub Compatibility |
/ |
| HUB |
| Device Compatibility |
/ |
| Connection Capacity |
/ |
| Interface & Button |
/ |
| VIDEO & AUDIO |
| Maximum Resolution |
2K QHD 4MP (2560 x 1440px) |
| Frame Rate |
15/20/25/30 fps (Default 15fps) |
| Digital Zoom |
12x |
| Video Compression |
H.264 |
| Live View |
Yes |
| Image Enhancement |
3D DNR |
| WDR |
| Audio Input & Output |
Built-in Microphone and Speaker |
| Audio Communication |
Two-Way Audio with Noise Cancellation |
| Siren Volume |
99dB (Level measured at 4-inch/10-cm distance) |
| STORAGE |
| Local Storage |
MicroSD Card Slot on Camera (Up to 512 GB) |
| General Information about using MicroSD Cards > |
| Cloud Storage |
Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION AND NOTIFICATIONS |
| Sensor |
/ |
| AI Detection |
Motion Detection |
| Person Detection |
| Line-Crossing Detection |
| Tamper Detection |
| BabyCry Detection |
| Vehicle Detection |
| Pet Detection |
| Meow Detection |
| Bark Detection |
| Glass-Breaking Detection |
| Activity Zones |
Yes |
| Output Notification |
System Notification |
| System Notification with Snapshot (Tapo Care Services) |
| NETWORK |
| Network Connectivity |
Connect via Wi-Fi |
| Wireless Connectivity |
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Ethernet Port |
/ |
| RTSP |
Yes |
| ONVIF |
Yes |
| SECURITY |
| Security |
On-Device Machine Learning |
| 128-bit AES Encryption with SSL/TLS |
| WPA/WPA2-PSK |
| POWER |
| Power Source |
9V DC Power Adapter |
| Input Voltage |
100-240 V, 50/60 Hz |
| Output Voltage |
9V, 0.6 A (DC Power) |
| GENERAL |
| Smart Integration |
Google Assistant, Amazon Alexa |
| Weather Resistance |
/ |
| System Requirements |
Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options |
Tabletop |
| Ceiling-Mounted |
| Operating Temperature |
0℃~40℃ |
| Storage Temperature |
-20℃~60℃ |
| Operating Humidity |
10%~90% RH, Non-condensing |
| Storage Humidity |
5%~90% RH, Non-condensing |
| Charging Temperature |
/ |
| Dimensions |
3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm) |
| Package Contents |

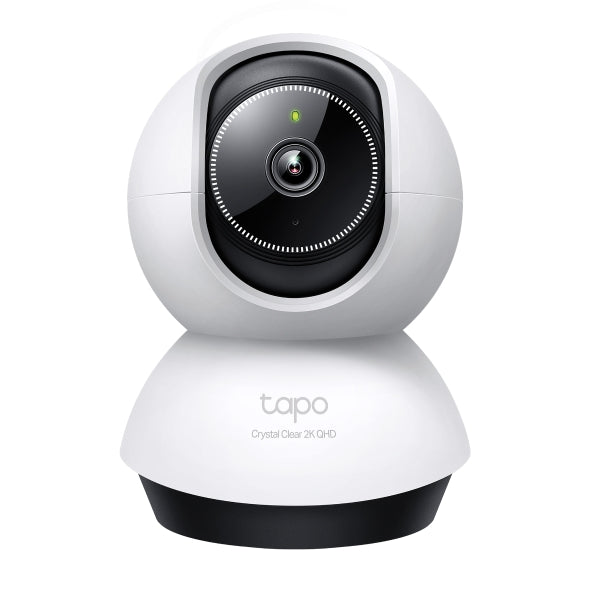

TC72 Camera |
| Power Adapter |
| Quick Start Guide |
| Mounting Screws |
| Mounting Template |
| Camera Base |
| Mounting Anchors |
| Certifications |
/ |
