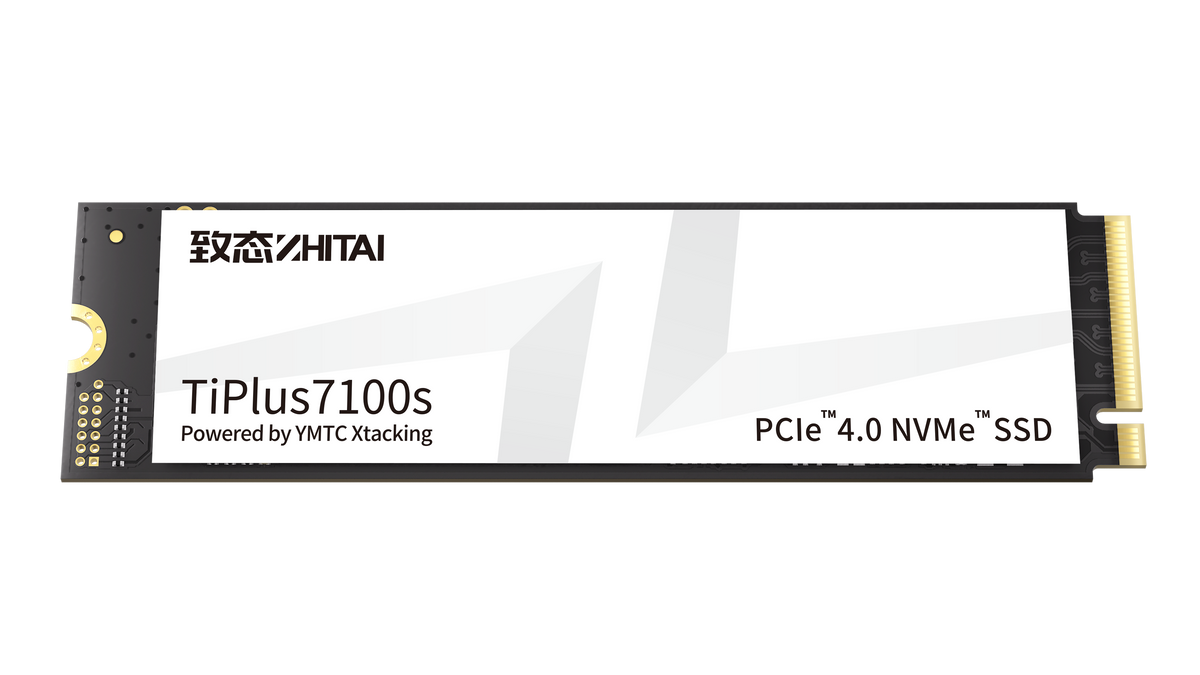

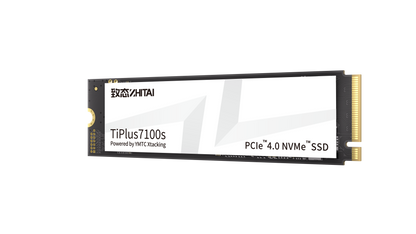

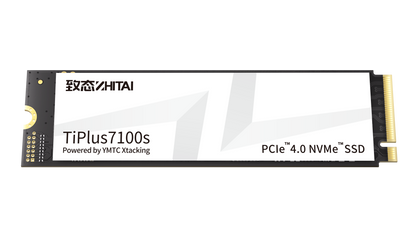

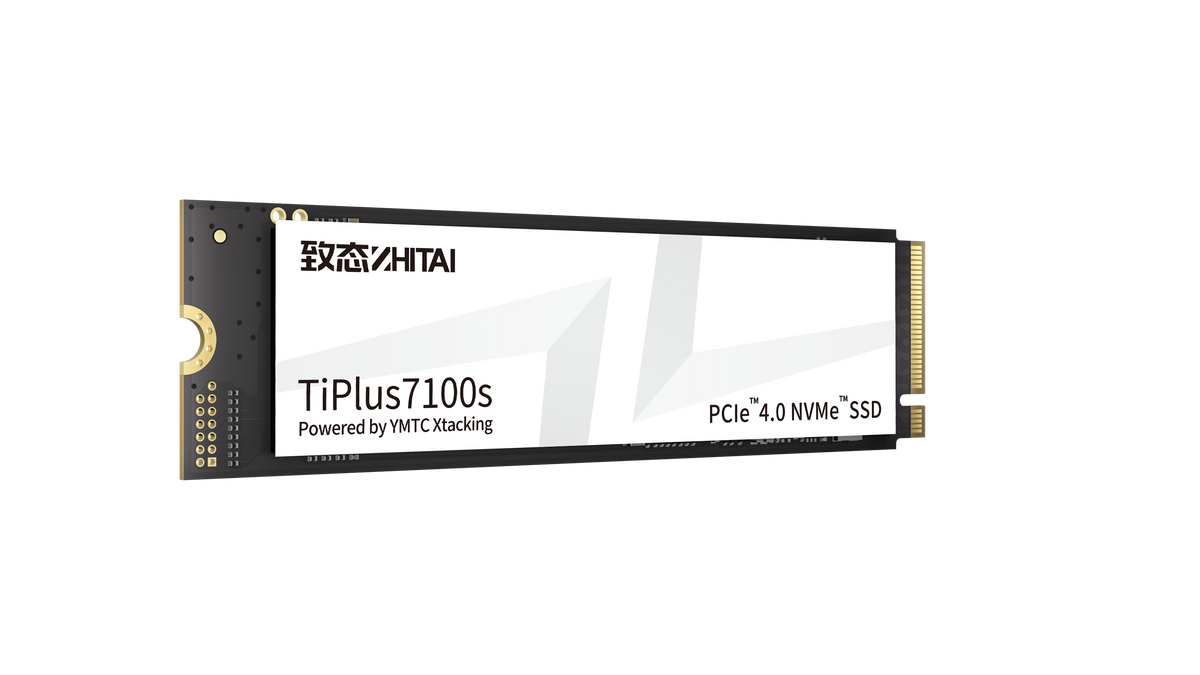

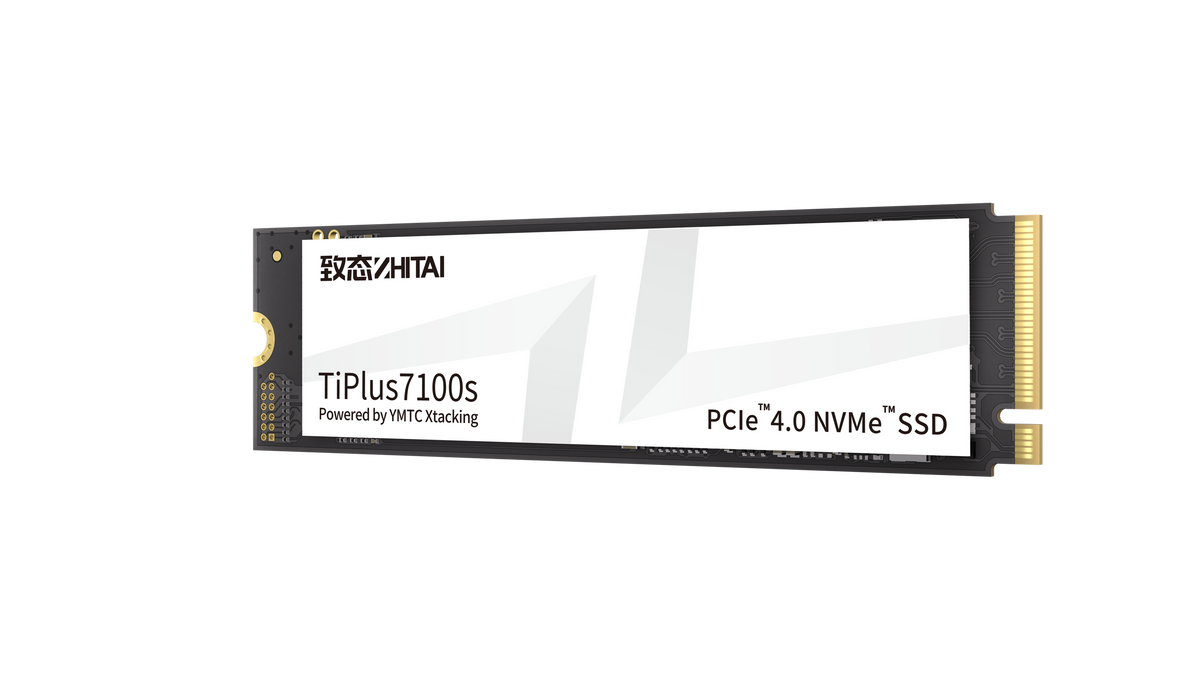

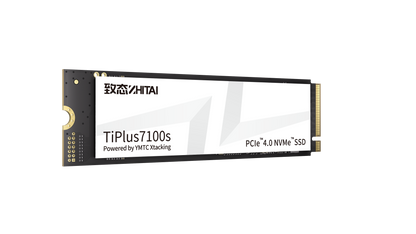

ZhiTai TiPlus7100s 1TB - a PCIe Gen4x4 NVMe 2.0 M.2 2280 drive rated up to 7,400MB/s.
The TiPlus7100s is ZhiTai's mainstream PCIe Gen4 drive, built on YMTC Xtacking 4.0 3D TLC NAND with a DRAM-less controller. It is rated for sequential reads up to 7,400MB/s and writes up to 6,900MB/s, with 4K random performance up to 1,500K IOPS on both read and write. Endurance is 600TBW against a 5-year limited warranty. The single-sided M.2 2280 layout keeps the drive thin, cool and easy to fit in desktops and slim laptops.
Key Features
-
Up to 7,400MB/s read — Sequential writes are rated up to 6,900MB/s.
-
1,500K/1,500K IOPS 4K random — High queue-depth random performance for game loads and large file work.
-
YMTC Xtacking 4.0 3D TLC NAND — Flash from the same manufacturer that designs the die.
-
DRAM-less controller — No dedicated DRAM cache - lower power draw and less heat than a cached design.
-
Single-sided M.2 2280 — Thin enough for tight laptop slots, standard in desktops.
-
600TBW + 5-year limited warranty — Endurance and warranty per ZhiTai's TiPlus7100s specification.
Specifications
| Model / MPN |
ZhiTai TiPlus7100s - ZTSS2CB08D5EMC-S00 |
| Capacity |
1TB (1024GB) |
| Form Factor |
M.2 2280, single-sided |
| Interface |
PCIe Gen4x4 NVMe 2.0 |
| NAND Flash |
YMTC Xtacking 4.0 3D TLC |
| Cache |
DRAM-less |
| Sequential Read |
Up to 7,400MB/s |
| Sequential Write |
Up to 6,900MB/s |
| 4K Random Read / Write |
Up to 1,500K / 1,500K IOPS |
| Endurance |
600TBW |
| Warranty |
5-year limited warranty |
| Management Software |
ZHITAI UNIMASTER |
What’s in the box
1 x ZhiTai TiPlus7100s 1TB M.2 2280 NVMe SSD.
Who it’s for
A Gen4 system or game drive for a new build, or a straight upgrade for a machine with a free M.2 2280 slot.
